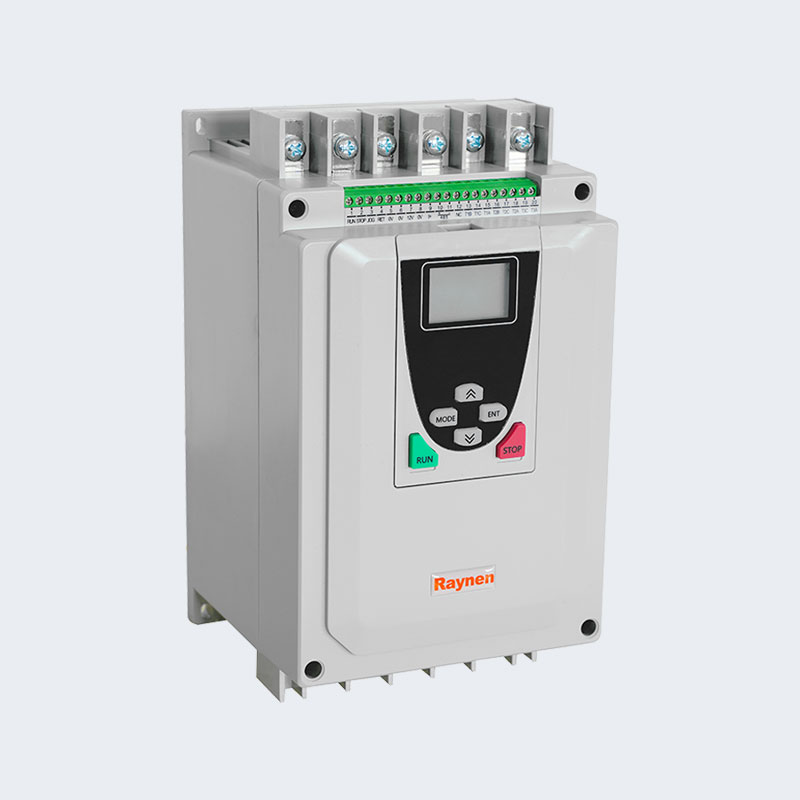

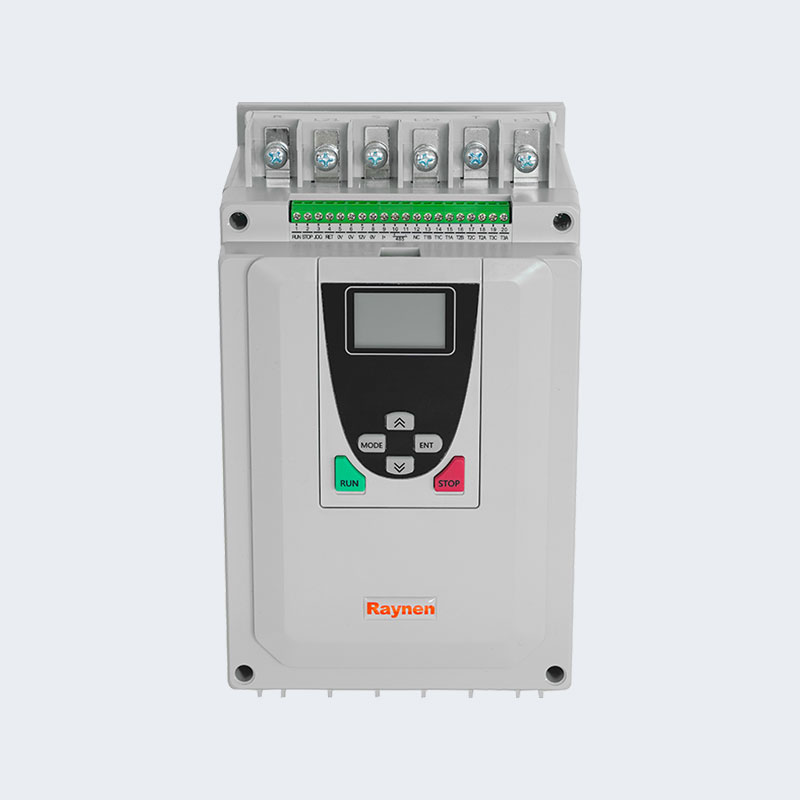

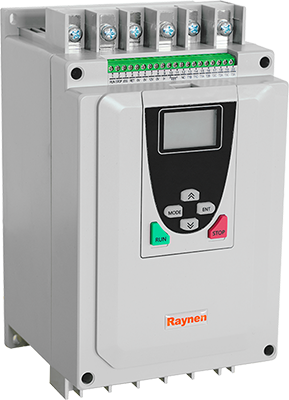

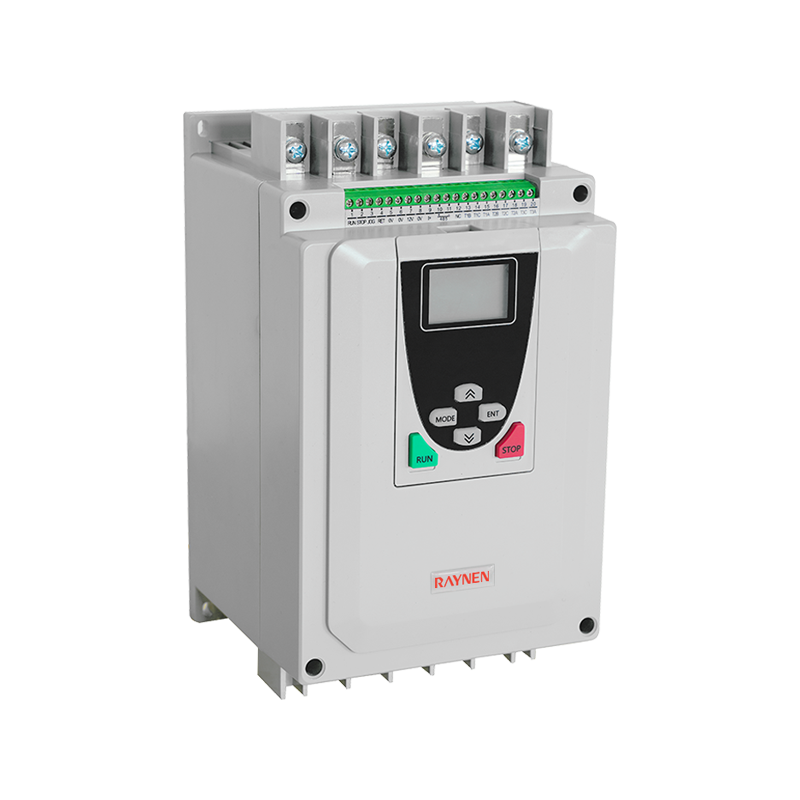

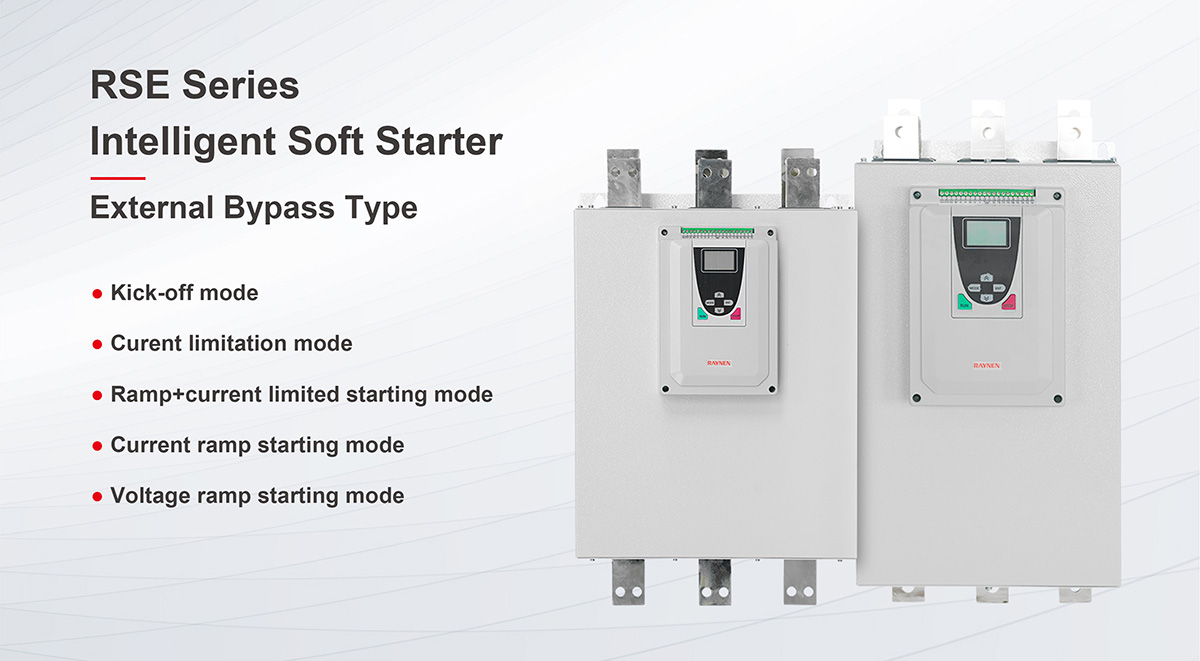

Product Summary
Specifications
Parametric |
||
Model |
RSE-T3-7-E ~ RSE-T3-55-E |
|
Bypass Type |
External bypass type |
|
Voltage |
380V |
|
Adaptive motor power (kW) |
7.5/11/15/18.5/22/30/37/45/55 |
|
Rated output current (A) |
15/23/30/37/45/60/75/90/110 |
|
Dimensions (mm) |
296*170*169 |
|
Installation size (mm) |
265*155 |
Product Features
Outstanding Quality |
Remote control |
||
• All performance indicators are carefully designed and rigorously tested • All levels protection • Easy to install and integrate in the control system |
• Communication function are used for remote control, monitoring and adjustment functions • Through RS485 standard interface, you can connect with PC and PLC |
||
Bypass contactor, Reduce loss |
Convenient Keypad |
||
• At the end of Starting, bypass contactor starts • The heat inside the starter is reduced and the loss is minimized • All protect functions are keep effective (Over-heat, Over-load, Un-der-load, etc.) |
• Use simply & intuitive operate keypad to adjust the motor data • English keypad makes the operation easier |
||
Low loss design |
More convenient |
||
RDS can continuously improve the operating condition of the motor throuogh the following ways: • Adaptive soft starting control technology is adopted to ensure that the motor speed curve is smooth and continuous and monotonically rising in any state, without speed inflection point • Reduces mechanical & hydraulic stresses • Reduce load of power distribution system (voltage peak, overcurrent) |
• RS485、Modbus communication • Upper wiring, easy to connect |
||
Applicable power |
|||
• Apply for wide power supply range of generators |
Straight-Through Connection Simplifies Wiring
Wiring And Terminals
Model Nomenclature
Selection Table
Model (380V) |
Adaptive motor power ( kW ) |
I out (A) |
Dimensions H*W*D (mm) |
Installation size (mm) |
|
H1*W1 |
Aperture |
||||
RSE-T3-7-E |
7.5 |
15 |
296*170*169 |
265*155 |
M6 |
RSE-T3-11-E |
11 |
23 |
|||
RSE-T3-15-E |
15 |
30 |
|||
RSE-T3-18-E |
18.5 |
37 |
|||
RSE-T3-22-E |
22 |
45 |
|||
RSE-T3-30-E |
30 |
60 |
|||
RSE-T3-37-E |
37 |
75 |
|||
RSE-T3-45-E |
45 |
90 |
|||
RSE-T3-55-E |
55 |
110 |
|||
RSE-T3-75-E |
75 |
150 |
378*192*227 |
308*150 |
M8 |
RSE-T3-90-E |
90 |
180 |
|||
RSE-T3-110-E |
115 |
230 |
|||
RSE-T3-132-E |
132 |
264 |
558*264*260 |
458*220 |
M10 |
RSE-T3-160-E |
160 |
320 |
|||
RSE-T3-185-E |
185 |
370 |
|||
RSE-T3-200-E |
200 |
400 |
|||
RSE-T3-250-E |
250 |
500 |
604*292*258 |
503*247 |
M10 |
RSE-T3-280-E |
280 |
560 |
|||
RSE-T3-320-E |
320 |
640 |
|||
RSE-T3-400-E |
400 |
800 |
675*410*228 |
536*340 |
M10 |
RSE-T3-450-E |
450 |
900 |
|||
RSE-T3-500-E |
500 |
1000 |
Performance & Configuration
Electrical characteristics |
|
Rated operating voltage |
Three-phase 380V±15% |
Rated operating frequency |
50Hz or 60Hz (please specify before ordering) |
Number of controlled phases |
3 |
Applicable motor |
Mouse-cage three-phase induction motor/asynchronous motor |
Starting frequency |
Depending on the load, it is recommended to start and stop no more than 10 times per hour under normal conditions, and 6 times under heavy load |
Starting method |
Voltage ramp, current ramp, current limit, inching, voltage ramp + current limit, sudden jump + voltage ramp |
Stop method |
Free stop, soft stop |
Protection function |
Phase loss protection, overcurrent protection, overload protection, current imbalance protection, overheating protection, start timeout protection, etc. |
Environmental characteristics |
|
Operating temperature |
-10℃~40℃ (40℃~ 60℃ need to reduce capacity) |
Storage temperature |
-25℃~70℃ |
Relative humidity |
95% no condensation or dripping |
Altitude |
Below 1000m (1000~3000m need to reduce capacity) |
Cooling method |
Natural air cooling |
Installation method |
Wall-mounted |
Other |
No flammable, explosive, corrosive gas, no conductive dust or metal powder |
Standards and Certification |
|
Implementation standards |
GB/T14048.6 |
Certification |
CCC |
Control circuit characteristics |
|
Bypass -01, 02 |
01, 02 start and close after completion to control the bypass contactor. (Chart) |
Run output -03, 04, 05 |
03, 04, 05 are all programmable relay outputs, and the delay time will be set by code f4. The output function will be set by code FE, and it will be closed when the output is valid. |
Fault output -06, 07, 08 |
06, 07, 08 are programmable fault relay outputs, they will be closed when a fault occurs or the power is off, and they will be opened when the power is on. |
Analog output -09, 10 |
09, 10 can measure the current information that changes with the load. 400% output 4 ~ 20mA calibration value, calculation Formula: D = 400/16(1x-4). lx is the actual measurement value (mA). Motor current (%). |
Immediate stop input -11 |
11 and common disconnection will stop the motor immediately (or connect other normal closing points in series. |
Soft stop input -12 |
12 and common disconnection will make the motor soft stop (or free stop) |
Start typing -13 |
13 and common closing will make the motor run |
Common -14, 15 |
Common terminal for input signal |
RS485 -16, 17, 18 |
RS485 communication terminal, connect multiple soft starters 16 is communication, grounding |
PE -19 |
Grounding terminal |
