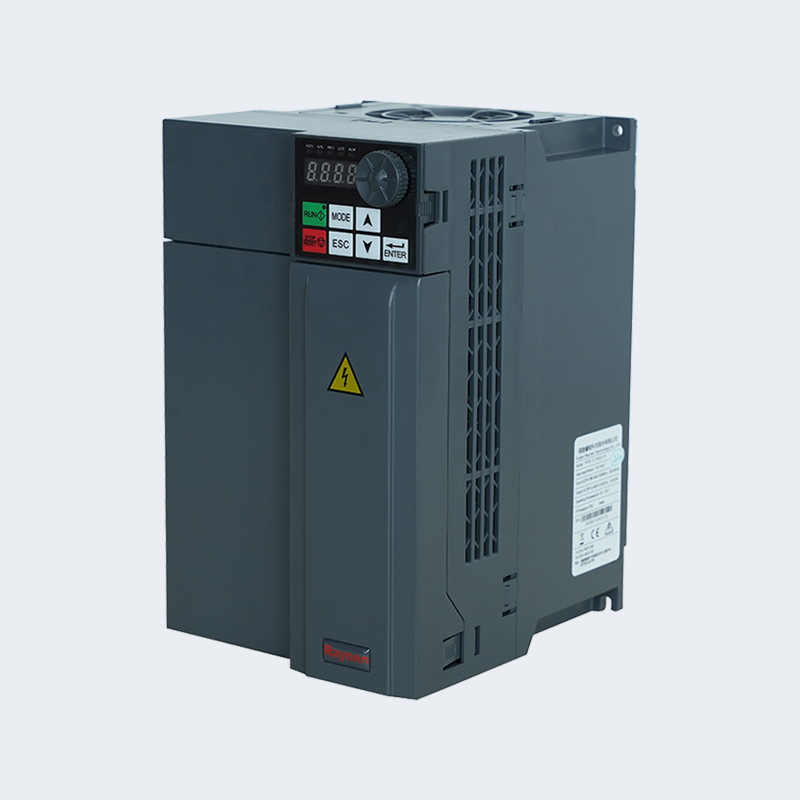

380V 4(5.5)-5.5(7.5)kW VFD

150%

150%

40

Start Torque @0.5HZ

Overload Capability

Ambient Temp ℃

1:40

IP20

2%

Speed Regulation

Ingress Protection

Speed accuracy±

Parametric

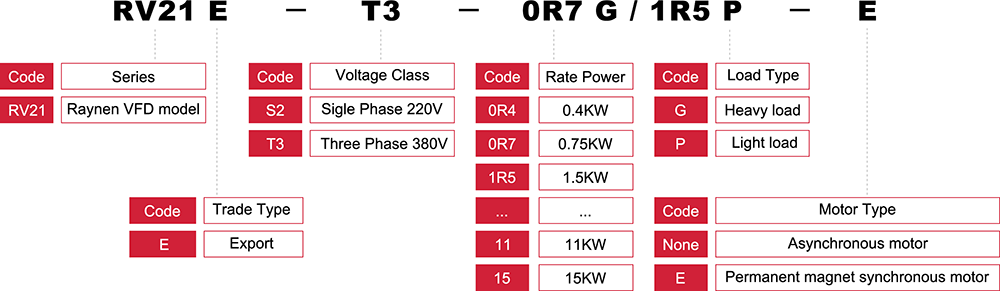

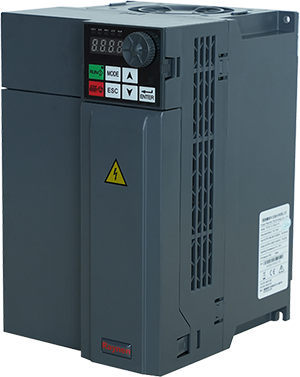

Model

RVE21-T3-4G/5R5P ~ RVE21-T3-5R5G/7R5P

Voltage

380V

P rated (kW)

4/5.5/7.5

Rated input current (A)

14/20.7/26.5

Rated output current (A)

9.5/12.6/18.5

Dimensions (mm)

200*138*145

Installation size (mm)

188*124

Inverter Model

G-type machine (heavy load)

P-type machine (light load)

Dimensions (mm)

Installation size (mm)

I in (A)

I out (A)

P rated (kW)

I in (A)

I out (A)

P rated (kW)

H

W

D

H1

W1

Aperture

RVE21-S2-0R4

6.3

2.5

0.4

-

-

-

170

81

142

161

64.5

Φ5

RVE21-S2-0R7

11.5

5

0.75

-

-

-

RVE21-S2-1R5

15.7

7

1.5

-

-

-

RVE21-S2-2R2

27

10

2.2

-

-

-

Inverter Model

G-type machine (heavy load)

P-type machine (light load)

Dimensions (mm)

Installation size (mm)

I in（A）

I out (A)

P rated (kW)

I in（A）

I out (A)

P rated (kW)

H

W

D

H1

W1

Aperture

RVE21-T3-0R4G/0R7P

2.1

1.5

0.4

3.6

2.6

0.75

170

81

142

161

64.5

Φ5

RVE21-T3-0R7G/1R5P

3.6

2.6

0.75

6.4

4.1

1.5

RVE21-T3-1R5G/2R2P

6.4

4.1

1.5

8.7

5.5

2.2

RVE21-T3-2R2G/3P

8.7

5.5

2.2

10.9

6.9

3

145

107

160

135

95

Φ5

RVE21-T3-3G/4P

10.9

6.9

3

14

9.5

4

RVE21-T3-4G/5R5P

14

9.5

4

20.7

12.6

5.5

200

138

145

188

124

Φ5

RVE21-T3-5R5G/7R5P

20.7

12.6

5.5

26.5

18.5

7.5

RVE21-T3-7R5G/11P

26.5

18.5

7.5

36.6

25

11

232

153

170

220

139

Φ5

RVE21-T3-11G/15P

36.6

25

11

40

32

15

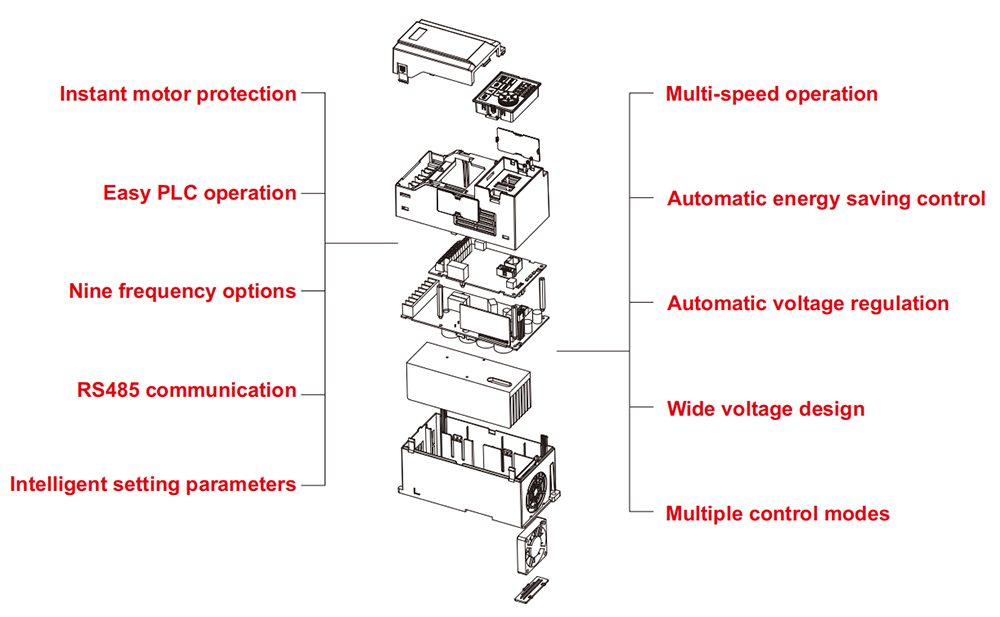

Basic application functions

Low-frequency torque boost

Through voltage boost and torque boost, the low-frequency torque of V/F control and speed sensorless vector control can be increased by about 0.1%~30.0%

V/F curve

Linear type, multi-point type

Acceleration/deceleration curve

Linear or S-shaped acceleration and deceleration: three groups of acceleration and deceleration time: acceleration and deceleration time range: 0-3200s

Automatic voltage regulation (AVR)

When the grid voltage changes, it can automatically keep the output voltage constant

Built-in PID

Closed-loop control system that can easily realize process control

DC braking

DC braking range: 0.0Hz-maximum frequency; braking time: 0.0s-20.0s; braking action current value: 0%-100%

Jog control

The motor can be started and stopped immediately; jog frequency setting range: 0.0-20.0Hz; jog stop mode: deceleration/free/DC braking

Frequency hopping

Three hopping frequency points and corresponding hopping frequency ranges can be set to prevent the inverter from running in this frequency band

Multi-speed

Up to 15 can be set through 4 logic input ports =Operating frequency

Input summing

Use the algebraic operation result of 2 analog inputs as frequency setting, making frequency setting more flexible

Switching between 2 sets of motor parameters

Two sets of motor parameters can be set and switched freely to match the current driven motor

Inverter protection

Input/output phase loss protection, underload detection, over torque protection, Undervoltage protection, overvoltage protection, overcurrent protection, overheating protection, phase-to-phase short circuit protection

Motor protection

Motor thermal protection, Motor current limit, Motor overload, Motor short circuit

Electrical Characteristics

Input voltage

Three-phase AC, 380-480V, 50/60Hz or single-phase AC, 200-240V, 50/60Hz

Output voltage

0-100% input voltage, 0.5Hz-400Hz

Control mode

Constant torque V/F, quadratic load V/F, sensorless vector control, energy-saving mode

Switching frequency

1.5kHz-12kHz

The automatic switching frequency adjustment function can be set: when the temperature rises, the switching frequency is automatically reduced

When the temperature returns to normal, the switching frequency returns to the initial value

Over-current capability

150% rated output current 60s, 200% rated output current 2s

Control Signal

Frequency setting signal

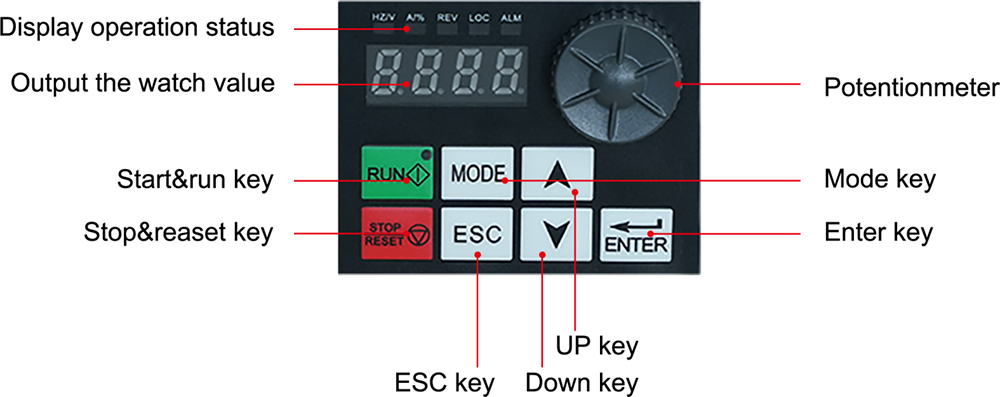

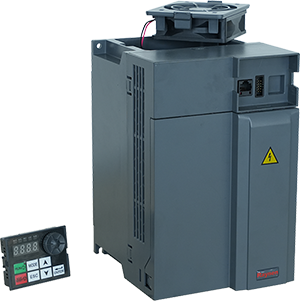

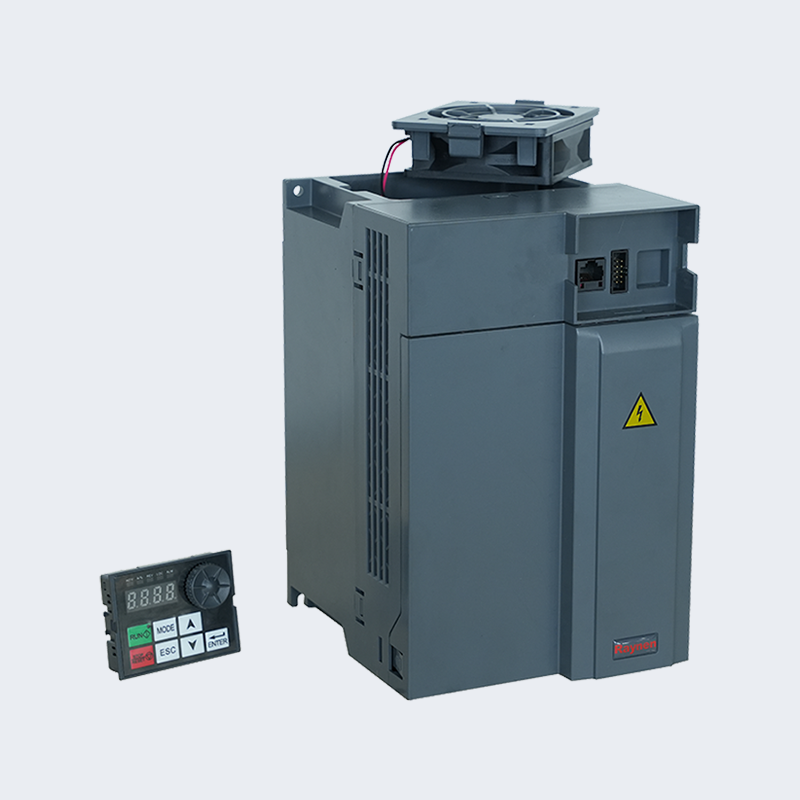

Integrated operation panel

Membrane switch (button), speed knob (potentiometer)

External signal

UP/DOWN setting, analog input, multi-speed, external panel, serial communication

Start & Stop control signal

Integrated operation panel

RUN, STOP buttons

External signal

Logic input terminal, external panel, serial communication

Control circuit characteristics

Internal power supply available

10V

24V

10VDC±5%, maximum current 10mA, for reference potentiometer

24VDC±5%, maximum current 100mA, for logic input port

Analog Input

AI1

Voltage analog input: 0-5VDC, or 0-10VDC, impedance is 30k

Current analog input: 0/4-20mADC, impedance is 250Ω

Resolution: 10-bit A/D conversion

Factory default setting: 0-5VDC voltage input

AI2

Voltage analog input: 0-10VDC, or PTC probe input

Resolution: 10-bit A/D conversion

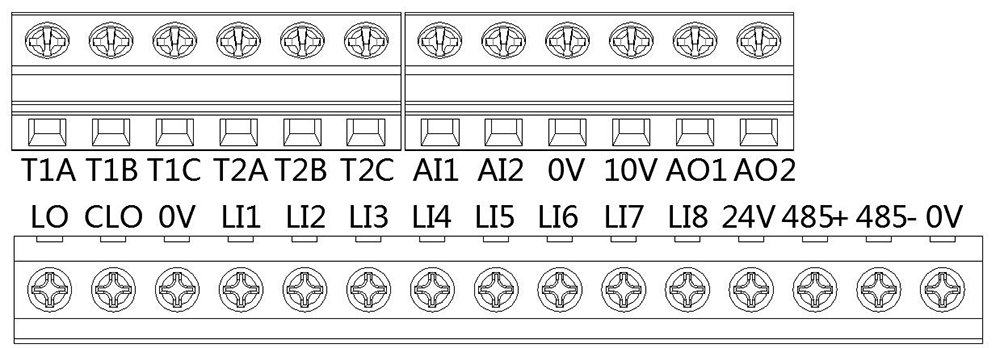

Logic Input

LI1-LI8

0-24VDC power supply

Positive logic (source) and negative logic (sink) are optional, and the factory default is negative logic

Forward, reverse, run, fault reset, multi-speed and other 69 functions are optional

220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products only have 6 channels: LI1-LI6

AI1, AI2

Forced valid input

In inverters below 11kW (inclusive), AI1 and AI2 can be set as logic inputs. F309 and F310 are forced valid inputs, and their configuration functions are always valid during power-on.

Analog Output

AO1、AO2

Voltage analog output: 0-10VDC, minimum load impedance is 470Ω

Current analog output: 0/4-20mA, maximum load impedance is 700Ω

Resolution: 8 bits

Output frequency, output current, speed setting, serial output data and other functions are optional

220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products have only 1 analog output, namely AO1

Logic Output

LO、CLO

Open collector, maximum current 100mA, maximum voltage 30VDC

Logic output or pulse output optional, factory default setting is logic output

Output frequency, output current, speed setting and other output functions optional

Relay Output

T1A、T1B、T1C

T2A、T2B、T2C

T1A normally open, T1B normally closed, T1C common point

T2A normally open, T2B normally closed, T2C common point

Contact capacity: 5A@250VAC, 5A@30VDC

Fault, alarm, set frequency arrival and other functions are optional

T1A defaults to fault, T2A defaults to operation

220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products have only 1 relay output, i.e. TA TB TC

Serial Communication

MODBUS-RTU, 2-wire RS-485, terminal interface

Electrical Characteristics

AC Drive protection

Input phase loss protection, Output phase loss protection, Underload detection, Over-torque protection, Undervoltage protection, Overvoltage protection, Overcurrent protection, Overheating protection, Phase short circuit protection

Motor protection

Motor thermal protection, Motor current limiting, Motor overload, Motor short circuit

Electrical Characteristics

Protection level

IP20

Ambient humidity

95% no condensation or water accumulation

Working/Storage temperature

-10~40°C/-20~60°C

Altitude

Below 1000m

Cooling method

Forced air cooling

Installation location

Indoor
