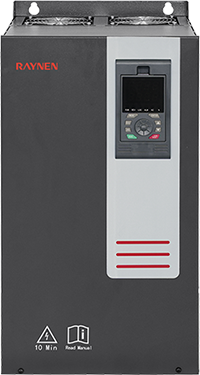

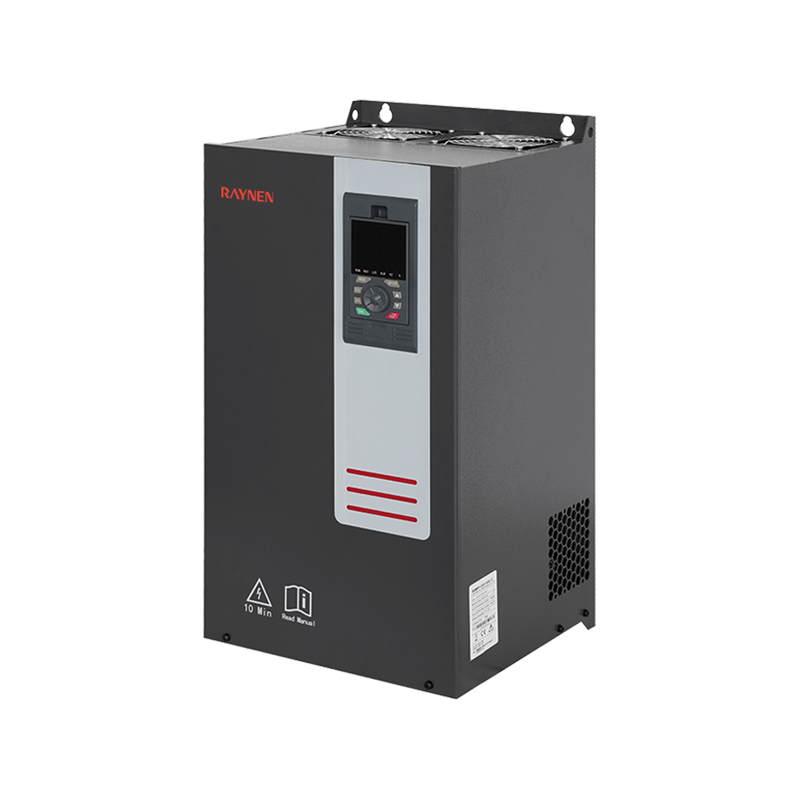

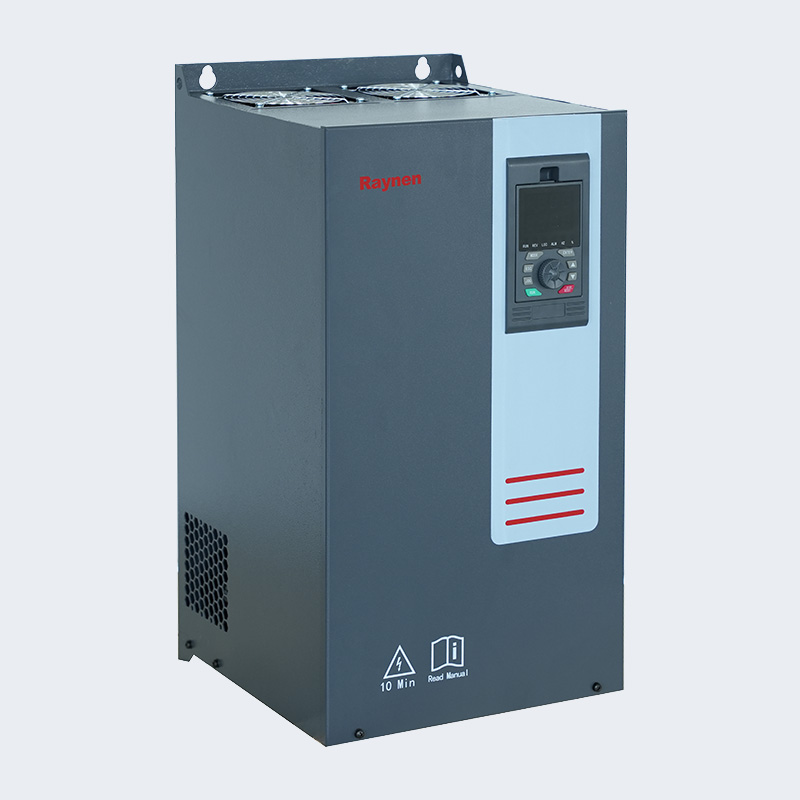

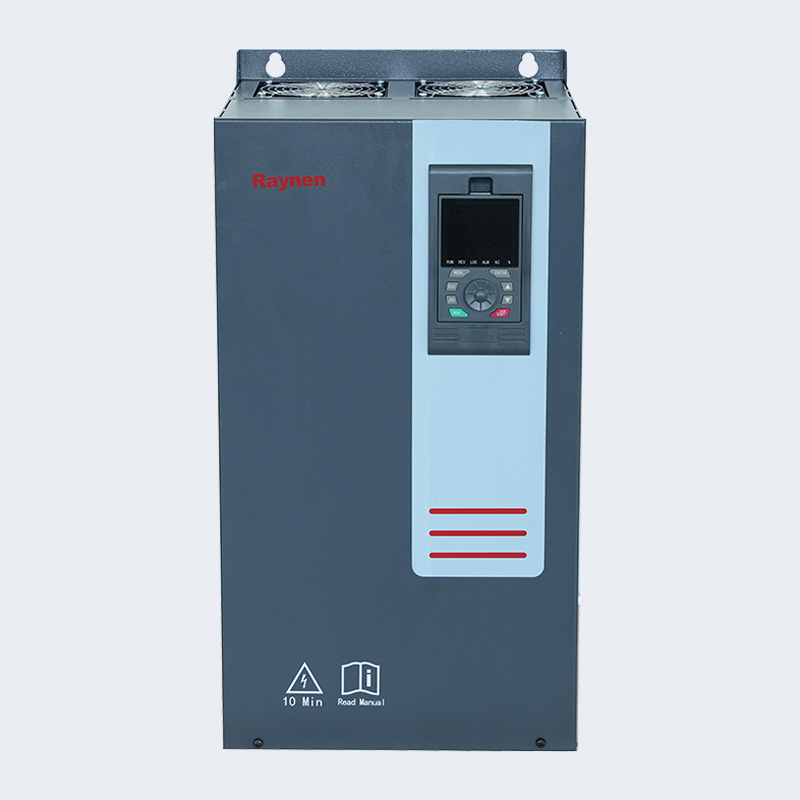

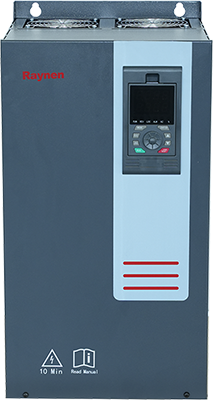

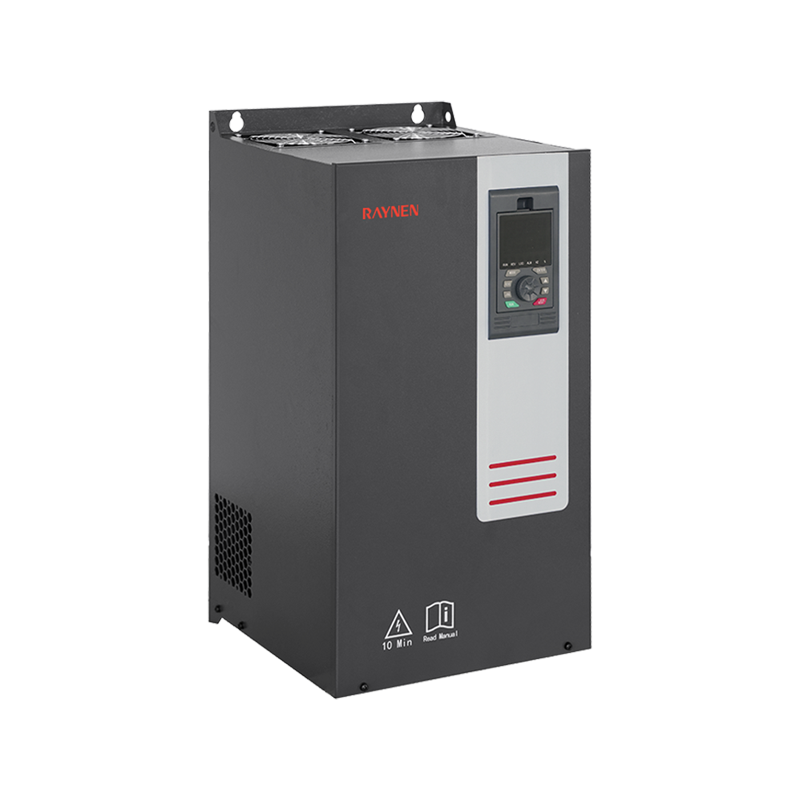

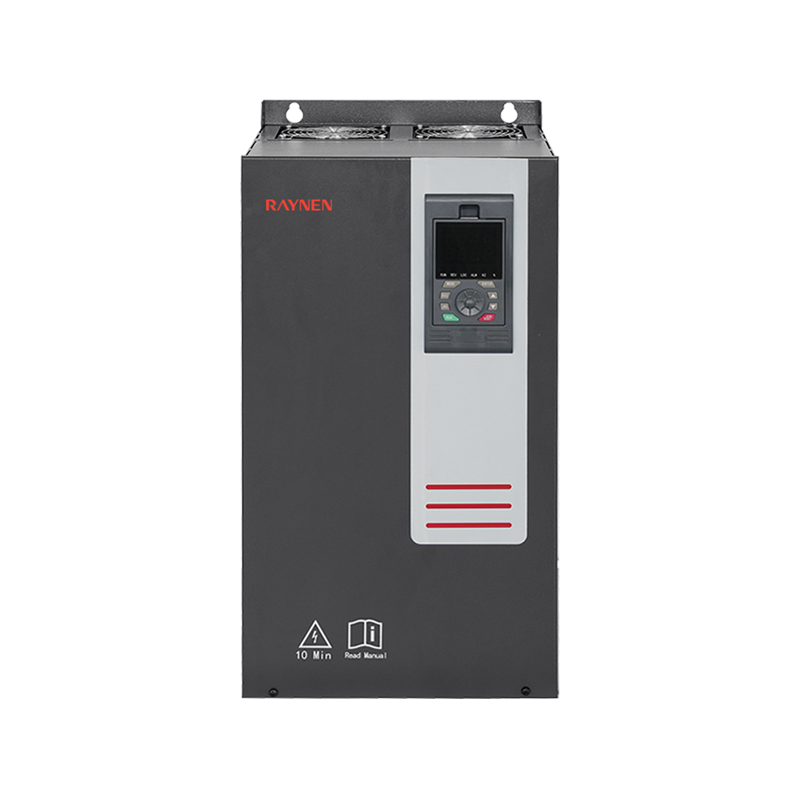

Product Summary
Parametric |
||
Model |
RVE32-T3-75G/90P ~ RVE32-T3-110G/132P |
|
Voltage |
380V |
|
P rated (kW) |
75/90/110/132 |
|
Rated input current (A) |
160/190/225/265 |
|
Rated output current (A) |
150/180/215/260 |
|
Dimensions (mm) |
600*310*310 |
|
Installation size (mm) |
583*240 |

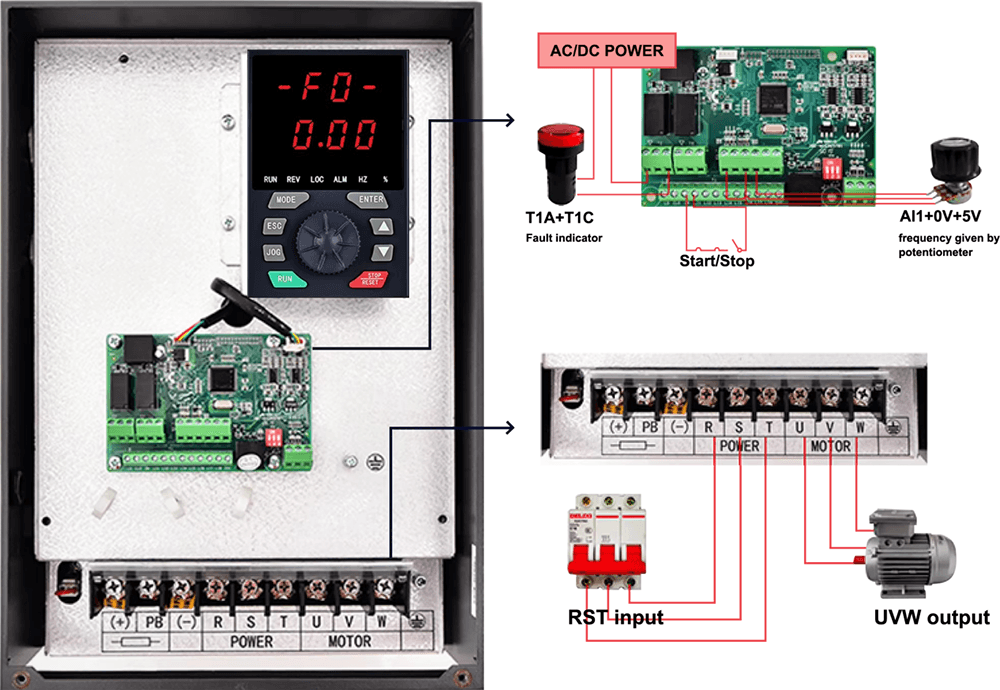

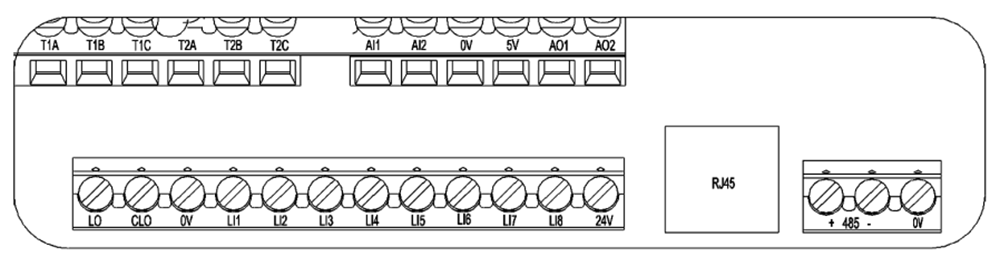

Control Terminals Structure Diagram
Parameter Settings
Details
Fan ● Dual air duct design ● Cooling ● Dust-proof ● Noise reduction |
|
Power board ● Special protective pain ● Acid and alkali resistance ● Aging resistance |
|
Control board ● Low frequency ● High torque ● Automatic voltage regulation |
|
LCD panel is optional ● Remvable operation panel makes operation more convenient |
|
Add epoxy partitions ● 37KW to 160KW: IP40 |
|
● Fully automatic finished product testing with load |
|
● Aging at high temperature of 60 degrees for 48 hours |

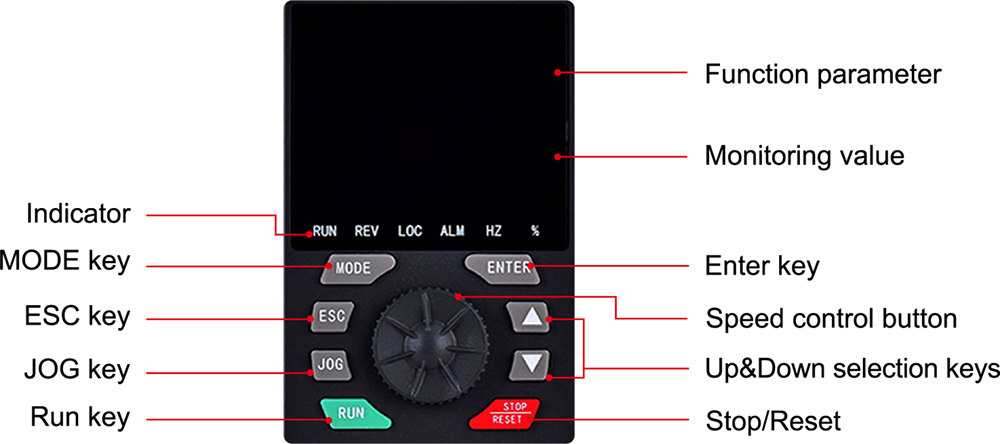

Operating Keypad Instructions

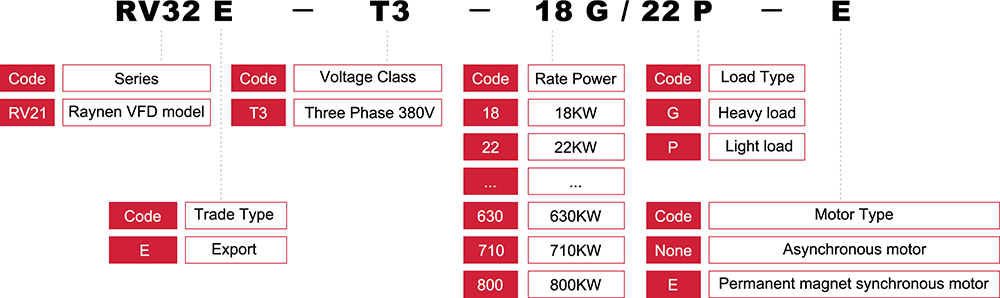

Model Nomenclature
Selection table Three-phase T3 type(Iron Shell)
Inverter Model |
G-type machine (heavy load) |
P-type machine (light load) |
Dimensions (mm) |
Installation size (mm) |
||||||||
I in(A) |
I out (A) |
P rated (kW) |
I in(A) |
I out (A) |
P rated (kW) |
H |
W |
D |
H1 |
W1 |
Aperture |
|
RVE32-T3-18G/22P |
47 |
38 |
18.5 |
56 |
45 |
22 |
327 |
168 |
185.6 |
313 |
120 |
Φ9 |
RVE32-T3-22G/30P |
56 |
45 |
22 |
70 |
60 |
30 |
335 |
200 |
195 |
321 |
140 |
Φ9 |
RVE32-T3-30G/37P |
70 |
60 |
30 |
80 |
75 |
37 |
410 |
260 |
214 |
396 |
180 |
Φ9 |
RVE32-T3-37G/45P |
80 |
75 |
37 |
94 |
92 |
45 |
||||||
RVE32-T3-45G/55P |
94 |
92 |
45 |
128 |
115 |
55 |
520 |
288 |
236 |
500 |
200 |
Φ11 |
RVE32-T3-55G/75P |
128 |
115 |
55 |
160 |
150 |
75 |
560 |
305 |
300 |
543 |
200 |
Φ11 |
RVE32-T3-75G/90P |
160 |
150 |
75 |
190 |
180 |
90 |
600 |
310 |
310 |
583 |
240 |
Φ11 |
RVE32-T3-90G/110P |
190 |
180 |
90 |
225 |
215 |
110 |
||||||
RVE32-T3-110G/132P |
225 |
215 |
110 |
265 |
260 |
132 |
||||||
RVE32-T3-132G/160P |
265 |
260 |
132 |
310 |
305 |
160 |
720 |
355 |
345 |
698 |
240 |
Φ13 |
RVE32-T3-160G/185P |
310 |
305 |
160 |
355 |
350 |
185 |
||||||
RVE32-T3-185G/200P |
355 |
350 |
185 |
385 |
380 |
200 |
||||||
RVE32-T3-200G/220P |
385 |
380 |
200 |
430 |
425 |
220 |
920 |
480 |
390 |
898 |
320 |
Φ13 |
RVE32-T3-220G/250P |
430 |
425 |
220 |
485 |
480 |
250 |
||||||
RVE32-T3-250G/280P |
485 |
480 |
250 |
545 |
530 |
280 |
1100 |
480 |
405 |
1078 |
320 |
Φ13 |
RVE32-T3-280G/315P |
545 |
530 |
280 |
610 |
600 |
315 |
||||||
RVE32-T3-315G/355P |
610 |
600 |
315 |
665 |
650 |
355 |
||||||
RVE32-T3-355G |
665 |
650 |
355 |
- |
- |
- |
1100 |
650 |
465 |
1060 |
350 |
Φ17 |
RVE32-T3-400G |
785 |
725 |
400 |
- |
- |
- |
||||||
RVE32-T3-500G |
890 |
860 |
500 |
- |
- |
- |
||||||
RVE32-T3-560G |
950 |
950 |
560 |
- |
- |
- |
2200 |
1100 |
800 |
943 |
665 |
Φ16 |
RVE32-T3-630G |
1100 |
1100 |
630 |
- |
- |
- |
||||||
RVE32-T3-710G |
1280 |
1280 |
710 |
- |
- |
- |
2200 |
1400 |
800 |
1100 |
665 |
Φ16 |
RVE32-T3-800G |
1380 |
1380 |
800 |
- |
- |
- |
Notes: For 380V VFD, products of 37KW and below are standard equipped with built-in brake unit, 45KW-185KW can be equipped with built-in brake unit, 200-800kW can be equipped with external brake unit.
Performance & Configuration
Basic application functions |
|
Low-frequency torque boost |
Through voltage boost and torque boost, the low-frequency torque of V/F control and speed sensorless vector control can be increased by about 0.1%~30.0% |
V/F curve |
Linear type, multi-point type |
Acceleration/deceleration curve |
Linear or S-shaped acceleration and deceleration: three groups of acceleration and deceleration time: acceleration and deceleration time range: 0-3200s |
Automatic voltage regulation (AVR) |
When the grid voltage changes, it can automatically keep the output voltage constant |
Built-in PID |
Closed-loop control system that can easily realize process control |
DC braking |
DC braking range: 0.0Hz-maximum frequency; braking time: 0.0s-20.0s; braking action current value: 0%-100% |
Jog control |
The motor can be started and stopped immediately; jog frequency setting range: 0.0-20.0Hz; jog stop mode: deceleration/free/DC braking |
Frequency hopping |
Three hopping frequency points and corresponding hopping frequency ranges can be set to prevent the inverter from running in this frequency band |
Multi-speed |
Up to 15 can be set through 4 logic input ports =Operating frequency |
Input summing |
Use the algebraic operation result of 2 analog inputs as frequency setting, making frequency setting more flexible |
Switching between 2 sets of motor parameters |
Two sets of motor parameters can be set and switched freely to match the current driven motor |
Inverter protection |
Input/output phase loss protection, underload detection, over torque protection, Undervoltage protection, overvoltage protection, overcurrent protection, overheating protection, phase-to-phase short circuit protection |
Motor protection |
Motor thermal protection, Motor current limit, Motor overload, Motor short circuit |
Electrical Characteristics |
|
Input voltage |
Three-phase AC, 380-480V, 50/60Hz or single-phase AC, 200-240V, 50/60Hz |
Output voltage |
0-100% input voltage, 0.5Hz-400Hz |
Control mode |
Constant torque V/F, quadratic load V/F, sensorless vector control, energy-saving mode |
Switching frequency |
1.5kHz-12kHz The automatic switching frequency adjustment function can be set: when the temperature rises, the switching frequency is automatically reduced When the temperature returns to normal, the switching frequency returns to the initial value |
Over-current capability |
150% rated output current 60s, 200% rated output current 2s |
Control Signal |
||
Frequency setting signal |
Integrated operation panel |
Membrane switch (button), speed knob (potentiometer) |
External signal |
UP/DOWN setting, analog input, multi-speed, external panel, serial communication |
|
Start & Stop control signal |
Integrated operation panel |
RUN, STOP buttons |
External signal |
Logic input terminal, external panel, serial communication |
Control circuit characteristics |
||
Internal power supply available |
10V 24V |
10VDC±5%, maximum current 10mA, for reference potentiometer 24VDC±5%, maximum current 100mA, for logic input port |
Analog Input |
AI1 |
Voltage analog input: 0-5VDC, or 0-10VDC, impedance is 30k Current analog input: 0/4-20mADC, impedance is 250Ω Resolution: 10-bit A/D conversion Factory default setting: 0-5VDC voltage input |
AI2 |
Voltage analog input: 0-10VDC, or PTC probe input Resolution: 10-bit A/D conversion |
|
Logic Input |
LI1-LI8 |
0-24VDC power supply Positive logic (source) and negative logic (sink) are optional, and the factory default is negative logic Forward, reverse, run, fault reset, multi-speed and other 69 functions are optional 220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products only have 6 channels: LI1-LI6 |
AI1, AI2 Forced valid input |
In inverters below 11kW (inclusive), AI1 and AI2 can be set as logic inputs. F309 and F310 are forced valid inputs, and their configuration functions are always valid during power-on. |
|
Analog Output |
AO1、AO2 |
Voltage analog output: 0-10VDC, minimum load impedance is 470Ω Current analog output: 0/4-20mA, maximum load impedance is 700Ω Resolution: 8 bits Output frequency, output current, speed setting, serial output data and other functions are optional 220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products have only 1 analog output, namely AO1 |
Logic Output |
LO、CLO |
Open collector, maximum current 100mA, maximum voltage 30VDC Logic output or pulse output optional, factory default setting is logic output Output frequency, output current, speed setting and other output functions optional |
Relay Output |
T1A、T1B、T1C T2A、T2B、T2C |
T1A normally open, T1B normally closed, T1C common point T2A normally open, T2B normally closed, T2C common point Contact capacity: 5A@250VAC, 5A@30VDC Fault, alarm, set frequency arrival and other functions are optional T1A defaults to fault, T2A defaults to operation 220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products have only 1 relay output, i.e. TA TB TC |
Serial Communication |
MODBUS-RTU, 2-wire RS-485, terminal interface |
Electrical Characteristics |
|
AC Drive protection |
Input phase loss protection, Output phase loss protection, Underload detection, Over-torque protection, Undervoltage protection, Overvoltage protection, Overcurrent protection, Overheating protection, Phase short circuit protection |
Motor protection |
Motor thermal protection, Motor current limiting, Motor overload, Motor short circuit |
Electrical Characteristics |
|||
Protection level |
IP20 |
Ambient humidity |
95% no condensation or water accumulation |
Working/Storage temperature |
-10~40°C/-20~60°C |
Altitude |
Below 1000m |
Cooling method |
Forced air cooling |
Installation location |
Indoor |
