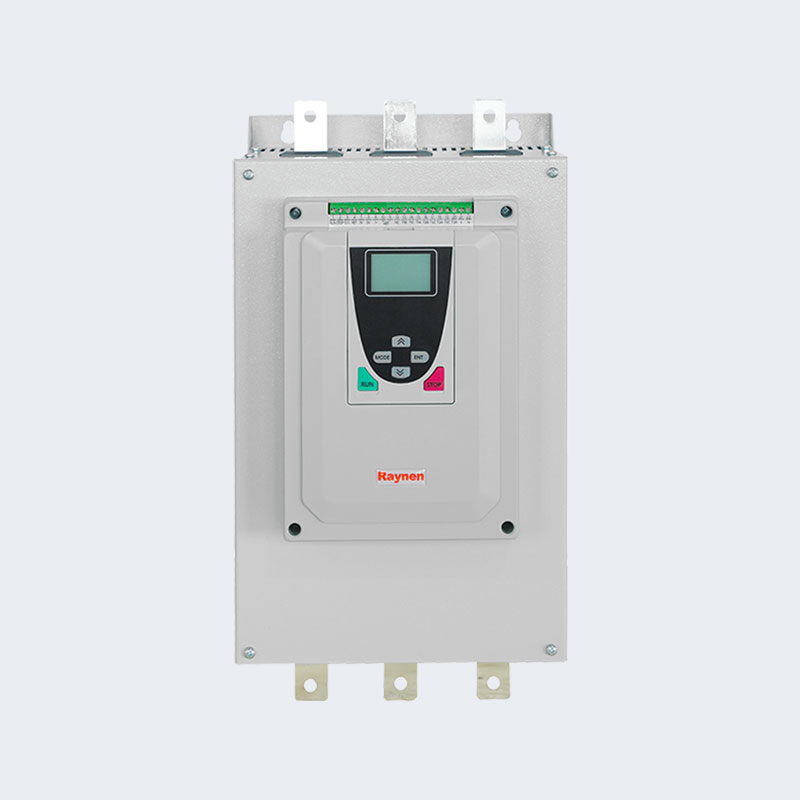

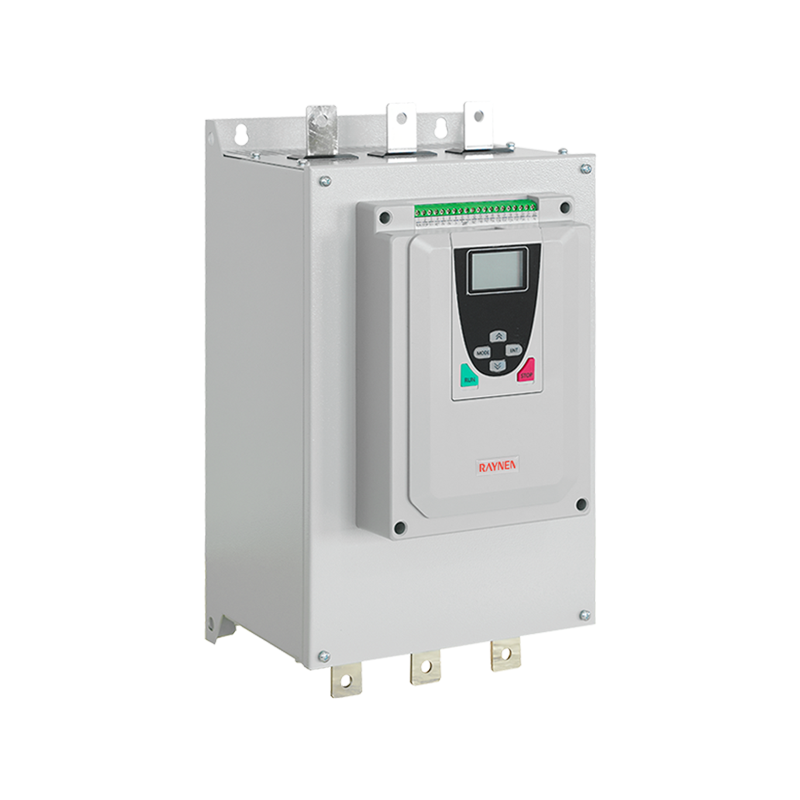

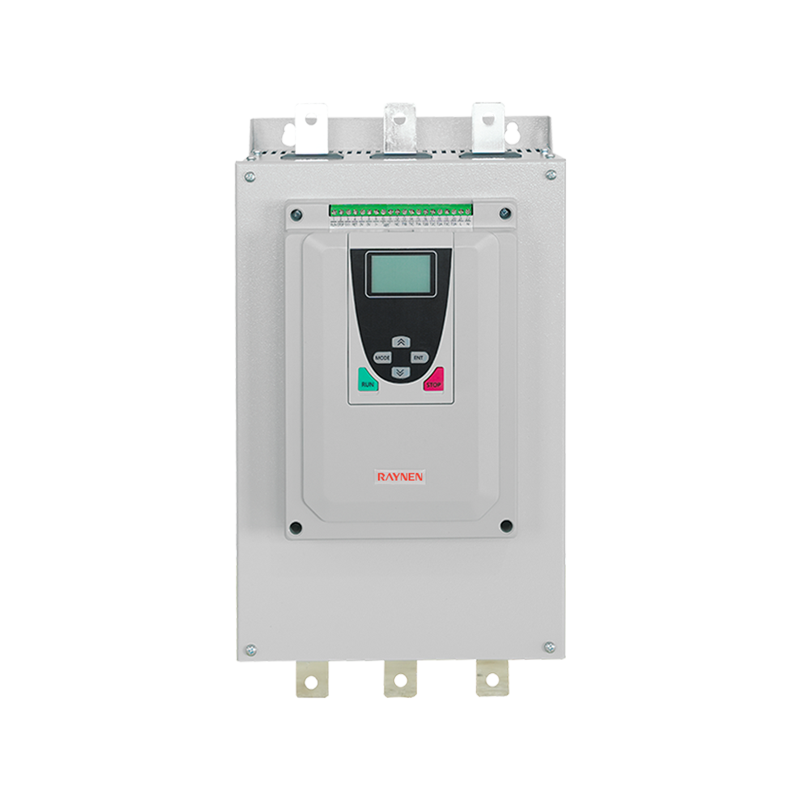

RSE-O 75-115kW Soft Starter

It adopts online bypass contactor, which has no limit on the mechanical life of contactor contacts. It is compatible with external bypass contactor and can drive non-traditional motor loads such as motor heaters, resistance loads and transformer loads.

Get A Quote Download

PREV：RSE-O 132-200kW Soft Starter NEXT：RSE-O 7.5-55kW Soft Starter

Parameter
Contact Us

Product Summary

Specifications

	Parametric
	Model	RSE-T3-75-O ~ RSE-T3-115-O
	Bypass Type	Online bypass type
	Voltage	380V
	Adaptive motor power (kW)	75/90/115
	Rated output current (A)	150/180/230
	Dimensions (mm)	443243248
	Installation size (mm)	392*180

Product Overview

	Independent control power supply (220VAC), parameter setting is also possible without power supply (380V)
	After the bypass contactor is removed, there is no contactor contact limit, and the service life is longer
	Compatible with external contactors, more flexible to use and suitable for a wider range of applications
	Can drive non-traditional motor loads such as motor heaters, resistive loads and transformer loads
	It can perfectly replace solid-state contactors and additionally provide soft start and soft stop functions
	Supports internal connection of motors, suitable for motors with larger specifications

Wiring And Terminals

Model Nomenclature

Selection Table

Model (380V)	Adaptive motor power ( kW )	I out (A)	Dimensions HWD (mm)	Installation size (mm)
Model (380V)	Adaptive motor power ( kW )	I out (A)	Dimensions HWD (mm)	H1*W1	Aperture
RSE-T3-7-O	7.5	15	342*200-214	299*145	M6
RSE-T3-11-O	11	23
RSE-T3-15-O	15	30
RSE-T3-18-O	18.5	37
RSE-T3-22-O	22	45
RSE-T3-30-O	30	60
RSE-T3-37-O	37	75
RSE-T3-45-O	45	90
RSE-T3-55-O	55	110
RSE-T3-75-O	75	150	443243248	392*180	M8
RSE-T3-90-O	90	180
RSE-T3-110-O	115	230
RSE-T3-132-O	132	264	574348248	493*280	M10
RSE-T3-160-O	160	320
RSE-T3-185-O	185	370
RSE-T3-200-O	200	400
RSE-T3-250-O	250	500	600430283	519*340	M10
RSE-T3-280-O	280	560
RSE-T3-320-O	320	640

Performance & Configuration

Electrical characteristics
Rated control power supply	Single-phase 220VAC±15%, 50/60Hz
Rated power supply voltage	Three-phase 380V~480V (-10%~+15%)
Rated power supply frequency	50Hz or 60Hz
Number of controlled phases	3
Applicable motor	Squirrel cage three-phase induction motor/asynchronous motor
Starting frequency	Depends on the load conditions. It is recommended to start and stop no more than 10 times per hour under normal conditions and 6 times per hour under heavy load
Starting mode	Voltage ramp, current ramp, current limit, inching, voltage ramp + current limit, sudden jump + voltage ramp
Stop mode	Free stop, soft stop
Protection function	Phase loss protection, overcurrent protection, overload protection, current imbalance protection, overheating protection, start timeout protection, undervoltage/overvoltage protection, start over frequency protection, high current protection, thyristor breakdown protection, power reverse sequence protection, wiring error protection, etc.

Environmental characteristics
Operating temperature	-10℃ ~ 40℃ (40℃ ~ 60℃ need to reduce capacity)
Storage temperature	-25℃ ~ 70℃
Relative humidity	95% no condensation or dripping
Altitude	Below 1000m (1000~3000m need to reduce capacity)
Cooling method	Forced air cooling
Installation method	Wall-mounted
Other	No flammable, explosive, or corrosive gases, no conductive dust or metal powder

Standards and Certification
Implementation standards	GB/T14048.6
Certification	CCC
