Product Summary
Specifications
Parametric |
||
Model |

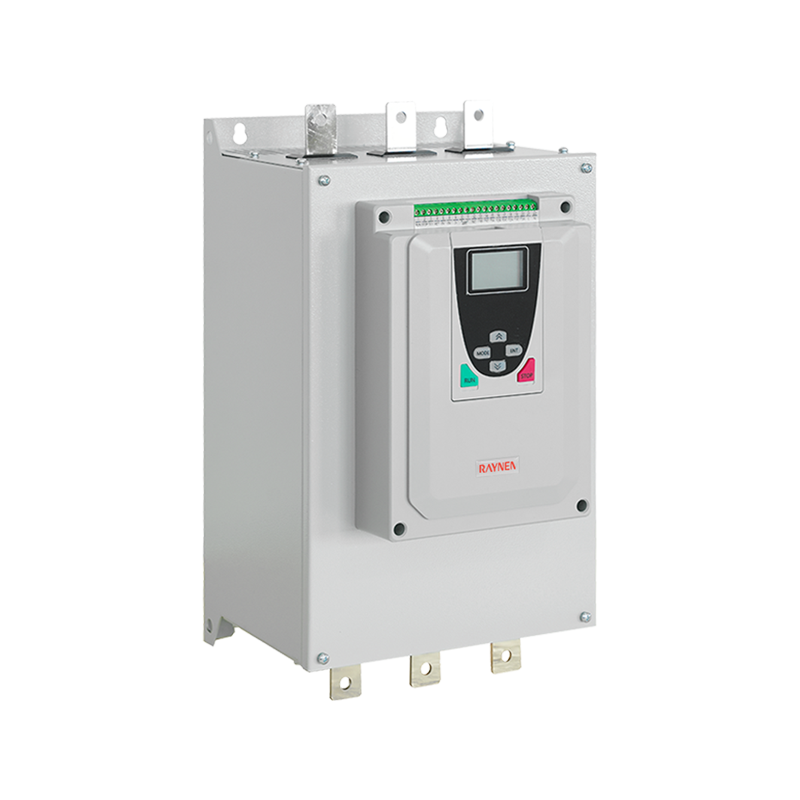

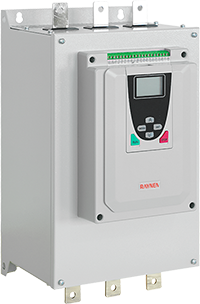

RSE-T3-75-I ~ RSE-T3-110-I |
|
Bypass Type |
Built-in bypass type |
|
Voltage |
380V |
|
Adaptive motor power (kW) |
75/90/115 |
|
Rated output current (A) |
150/180/230 |
|
Dimensions (mm) |
443*243*248 |
|
Installation size (mm) |
392*180 |
Product Overview
Wiring And Terminals
Model Nomenclature
Selection Table
Model (380V) |
Adaptive motor power ( kW ) |
I out (A) |
Dimensions H*W*D (mm) |
Installation size (mm) |
|
H1*W1 |
Aperture |
||||
RSE-T3-7-I |
7.5 |
15 |
342*200-208 |
299*145 |
M6 |
RSE-T3-11-I |
11 |
23 |
|||
RSE-T3-15-I |
15 |
30 |
|||
RSE-T3-18-I |
18.5 |
37 |
|||
RSE-T3-22-I |
22 |
45 |
|||
RSE-T3-30-I |
30 |
60 |
|||
RSE-T3-37-I |
37 |
75 |
|||
RSE-T3-45-I |
45 |
90 |
|||
RSE-T3-55-I |
55 |
110 |
|||
RSE-T3-75-I |
75 |
150 |
443*243*248 |
392*180 |
M8 |
RSE-T3-90-I |
90 |
180 |
|||
RSE-T3-110-I |
115 |
230 |
|||
RSE-T3-132-I |
132 |
264 |
670*280*248 |
588*230 |
M10 |
RSE-T3-160-I |
160 |
320 |
|||
RSE-T3-185-I |
185 |
370 |
|||
RSE-T3-200-I |
200 |
400 |
|||
RSE-T3-250-I |
250 |
500 |
710*320*252 |
628*260 |
M10 |
RSE-T3-280-I |
280 |
560 |
|||
RSE-T3-320-I |
320 |
640 |
Performance & Configuration
Electrical characteristics |
|
Rated control power supply |
Single-phase 220VAC±15%, 50/60Hz |
Rated power supply voltage |
Three-phase 380V~480V (-10%~+15%) |
Rated power supply frequency |
50Hz or 60Hz |
Number of controlled phases |
3 |
Applicable motor |
Squirrel cage three-phase induction motor/asynchronous motor |
Starting frequency |
Depends on the load conditions. It is recommended to start and stop no more than 10 times per hour under normal conditions and 6 times per hour under heavy load |
Starting mode |
Voltage ramp, current ramp, current limit, inching, voltage ramp + current limit, sudden jump + voltage ramp |
Stop mode |
Free stop, soft stop |
Protection function |
Phase loss protection, overcurrent protection, overload protection, current imbalance protection, overheating protection, start timeout protection, undervoltage/overvoltage protection, start over frequency protection, high current protection, thyristor breakdown protection, power reverse sequence protection, wiring error protection, etc. |
Environmental characteristics |
|
Operating temperature |
-10℃ ~ 40℃ (40℃ ~ 60℃ need to reduce capacity) |
Storage temperature |
-25℃ ~ 70℃ |
Relative humidity |
95% no condensation or dripping |
Altitude |
Below 1000m (1000~3000m need to reduce capacity) |
Cooling method |
55kW and below: natural cooling; 75kW and above: forced air cooling |
Installation method |
Wall-mounted |
Other |
No flammable, explosive, or corrosive gases, no conductive dust or metal powder |
Standards and Certification |
|
Implementation standards |
GB/T14048.6 |
Certification |
CCC |
