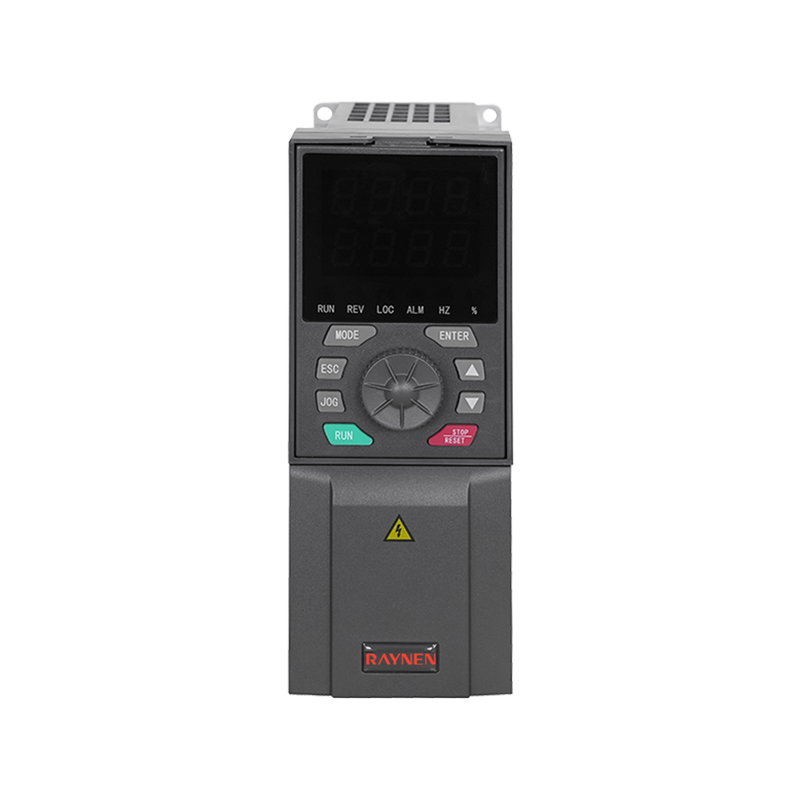

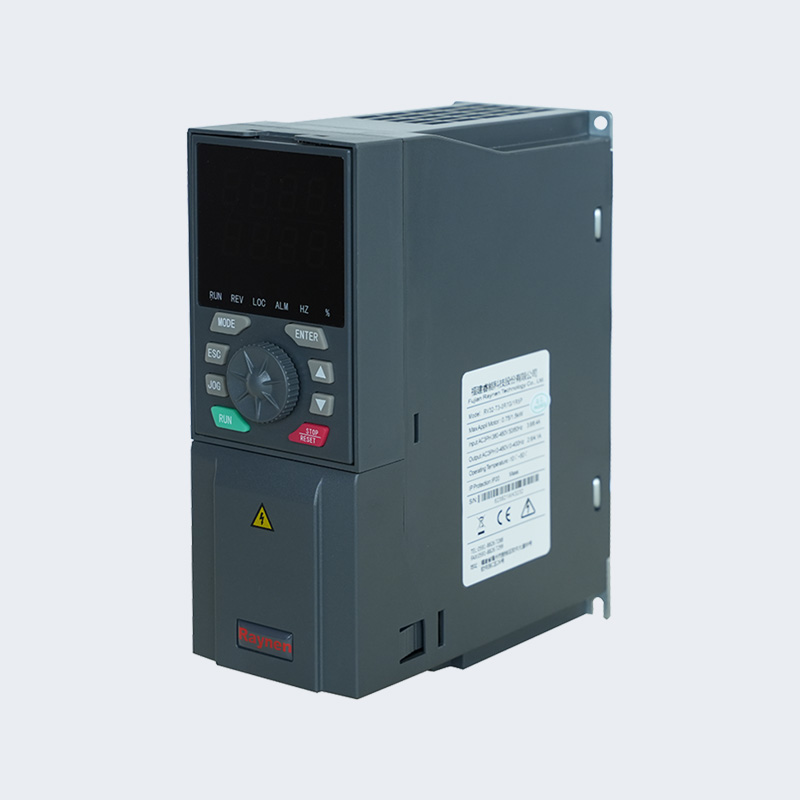

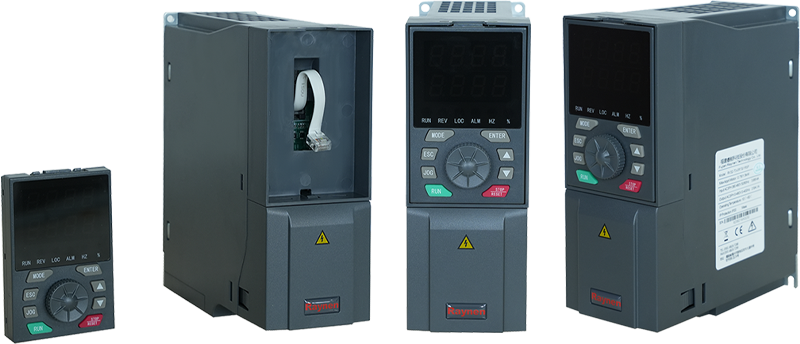

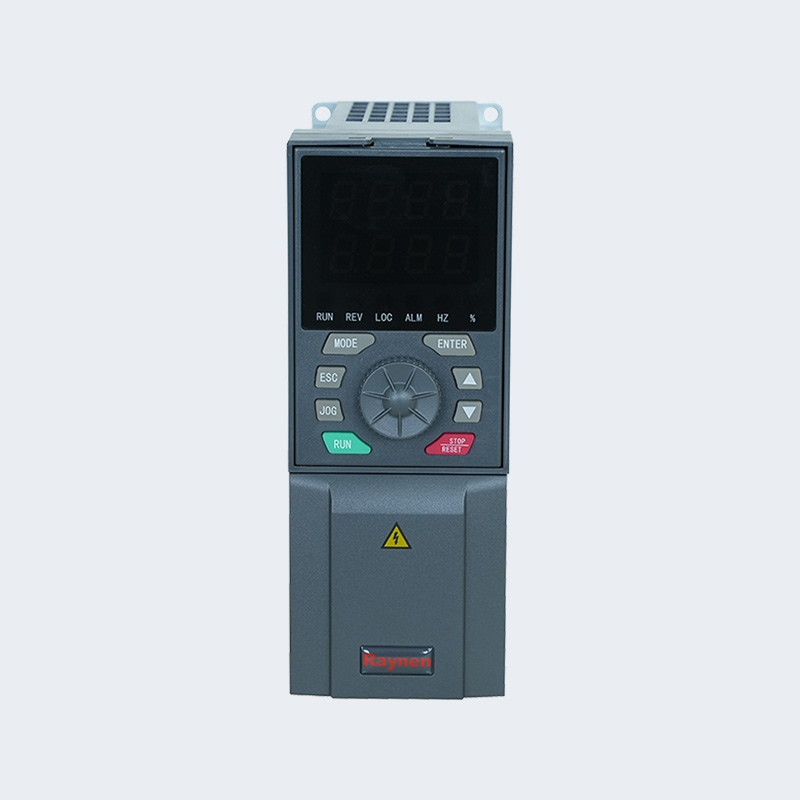

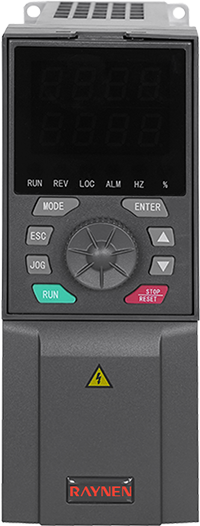

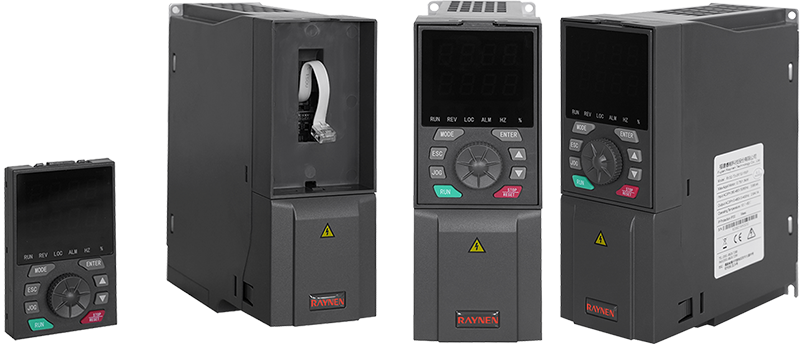

380V 0.75(1.5)-3(4)kW VFD

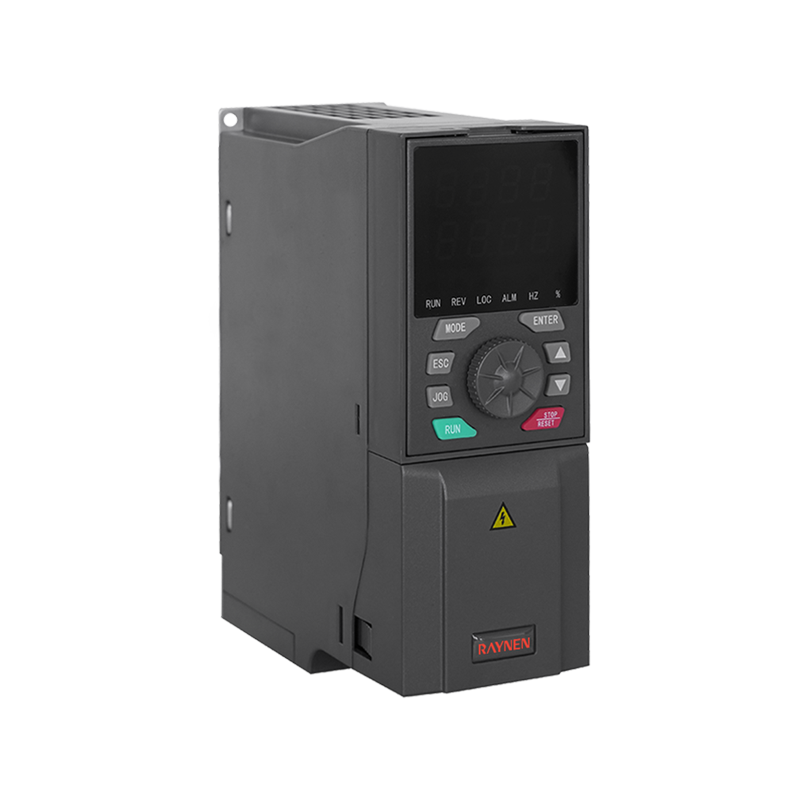

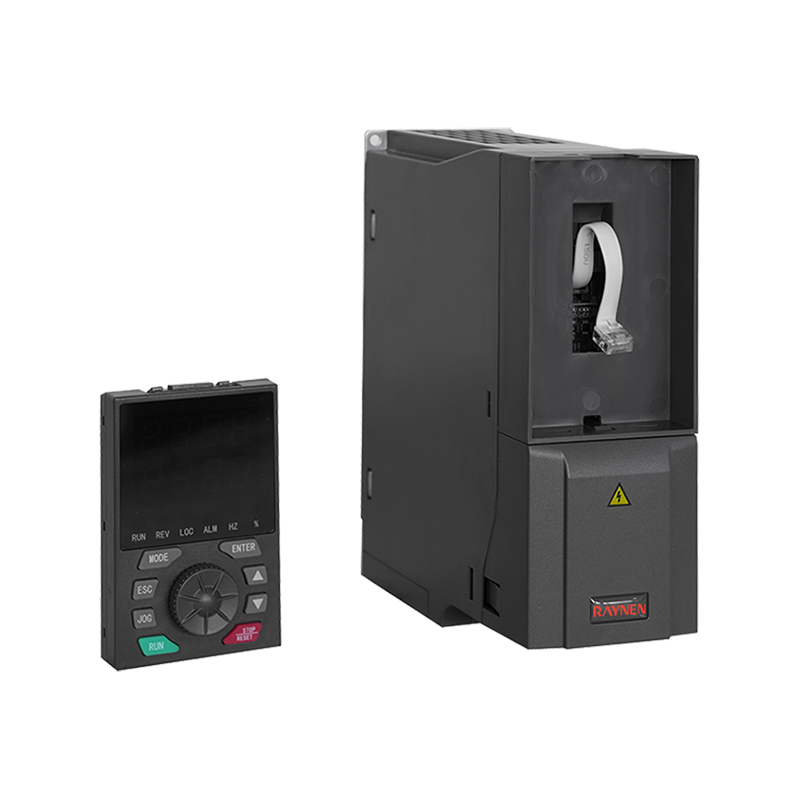

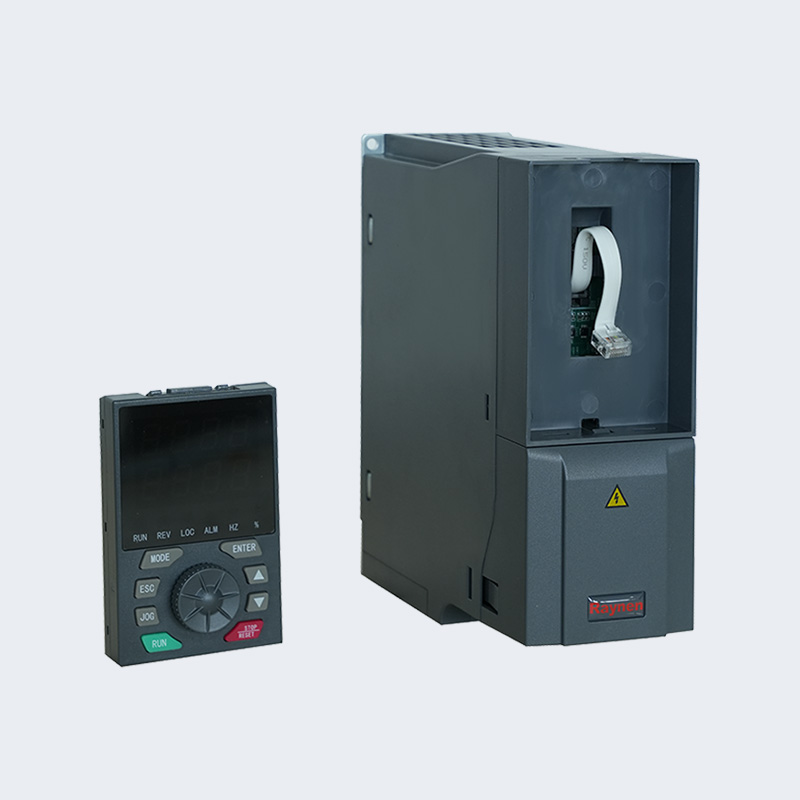

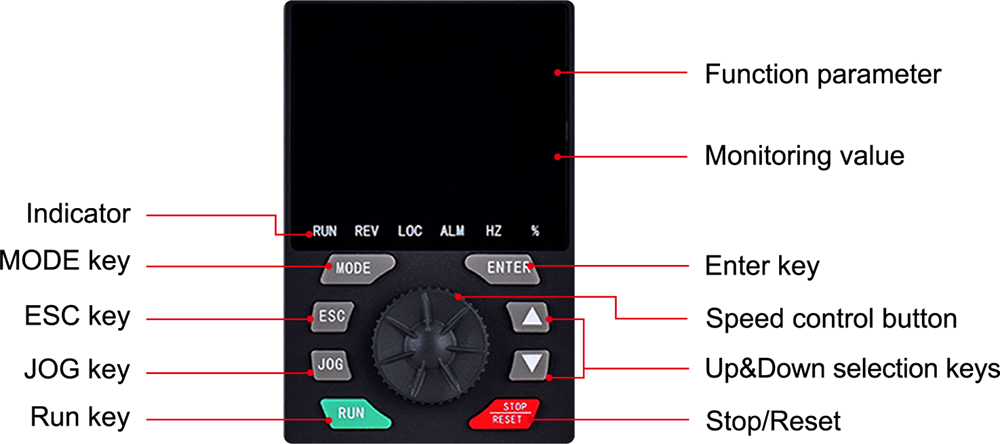

External keyboard supports double-line

Four-layer circuit board design, three times of Protective paint spraying

Fully automatic finished product testing with load

Double CPU makes it run more stable

Straight-through & Wide tooth surface of heat dissipation, working in high-temperature

Aging at high temperature of 60 degrees for 48 hours

Parametric

Model

RVE32-T3-0R7G/1R5P ~ RVE32-T3-3G/4P

Voltage

380V

P rated (kW)

0.75/1.5/2.2/3/4

Rated input current (A)

3.6/6.4/8.7/10.9/14

Rated output current (A)

2.6/4.1/5.5/6.9/9.5

Dimensions (mm)

206*76.5*168.5

Installation size (mm)

195*66.5

Inverter Model

G-type machine (heavy load)

P-type machine (light load)

Dimensions (mm)

Installation size (mm)

I in（A）

I out (A)

P rated (kW)

I in（A）

I out (A)

P rated (kW)

H

W

D

H1

W1

Aperture

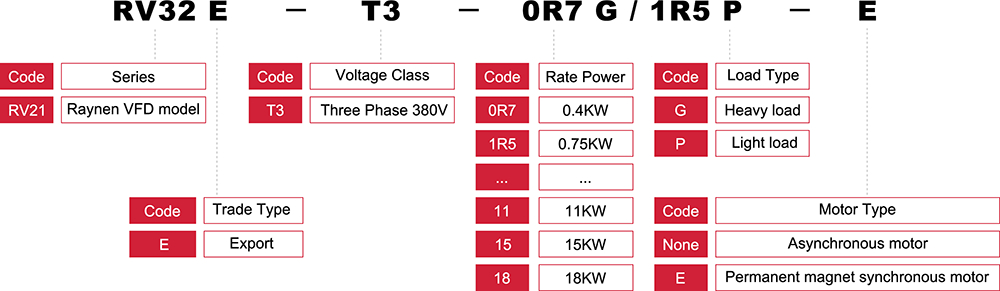

RVE32-T3-0R7G/1R5P

3.6

2.6

0.75

6.4

4.1

1.5

206

76.5

168.5

195

66.5

Φ5

RVE32-T3-1R5G/2R2P

6.4

4.1

1.5

8.7

5.5

2.2

RVE32-T3-2R2G/3P

8.7

5.5

2.2

10.9

6.9

3

RVE32-T3-3G/4P

10.9

6.9

3

14

9.5

4

RVE32-T3-4G/5R5P

14

9.5

4

20.7

12.6

5.5

262

100

171

251

90

Φ5

RVE32-T3-5R5G/7R5P

20.7

12.6

5.5

26.5

18.5

7.5

RVE32-T3-7R5G/11P

26.5

18.5

7.5

36.6

25

11

RVE32-T3-11G/15P

36.6

25

11

40

32

15

353

120

222

341

108

Φ7

RVE32-T3-15G/18P

40

32

15

47

38

18.5

Basic application functions

Low-frequency torque boost

The voltage boost and torque boost can increase the low-frequency torque of V/F control and speed sensorless torque control by about 0.1%~30.0% respectively.

V/F curve

Linear type, multi-point type

Acceleration/deceleration curve

Linear or S-shaped acceleration and deceleration: three groups of acceleration and deceleration time: acceleration and deceleration time range: 0-3200s

Automatic voltage regulation (AVR)

When the grid voltage changes, it can automatically keep the output voltage constant

Built-in PID

Closed-loop control system that can easily realize process control

DC braking

DC braking range: 0.0Hz-maximum frequency; braking time: 0.0s-20.0s; braking action current value: 0%-100%

Jog control

The motor can be started and stopped immediately; jog frequency setting range: 0.0-20.0Hz; jog stop mode: deceleration/free/DC braking

Frequency hopping

Three hopping frequency points and corresponding hopping frequency ranges can be set to prevent the inverter from running in this frequency band

Multi-speed

Up to 15 can be set through 4 logic input ports =Operating frequency

Input summing

Use the algebraic operation result of 2 analog inputs as frequency setting, making frequency setting more flexible

Switching between 2 sets of motor parameters

Two sets of motor parameters can be set and switched freely to match the current driven motor

Inverter protection

Input/output phase loss protection, underload detection, over torque protection, Undervoltage protection, overvoltage protection, overcurrent protection, overheating protection, phase-to-phase short circuit protection

Motor protection

Motor thermal protection, Motor current limit, Motor overload, Motor short circuit

Electrical Characteristics

Input voltage

Three-phase AC, 380-480V, 50/60Hz

Output voltage

0-100% input voltage, 0.5Hz-400Hz

Control mode

Constant torque V/F, quadratic load V/F, sensorless vector control, energy-saving mode

Switching frequency

1.5kHz-12kHz

The automatic switching frequency adjustment function can be set: when the temperature rises, the switching frequency is automatically reduced

When the temperature returns to normal, the switching frequency returns to the initial value

Over-current capability

150% rated output current 60s, 200% rated output current 2s

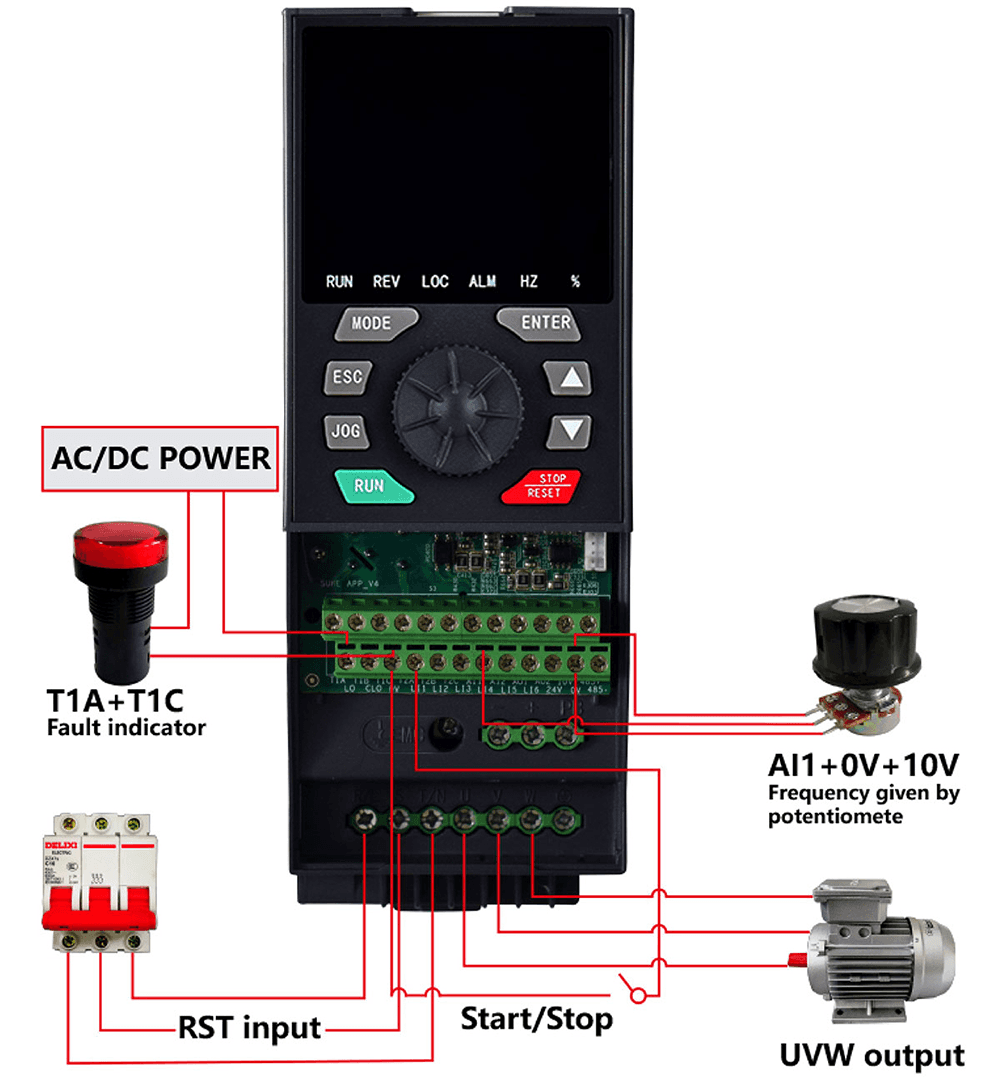

Control Signal

Frequency setting signal

Integrated operation panel

Membrane switch (button), speed knob (potentiometer)

External signal

UP/DOWN setting, analog input, multi-speed, external panel, serial communication

Start & Stop control signal

Integrated operation panel

RUN, STOP buttons

External signal

Logic input terminal, external panel, serial communication

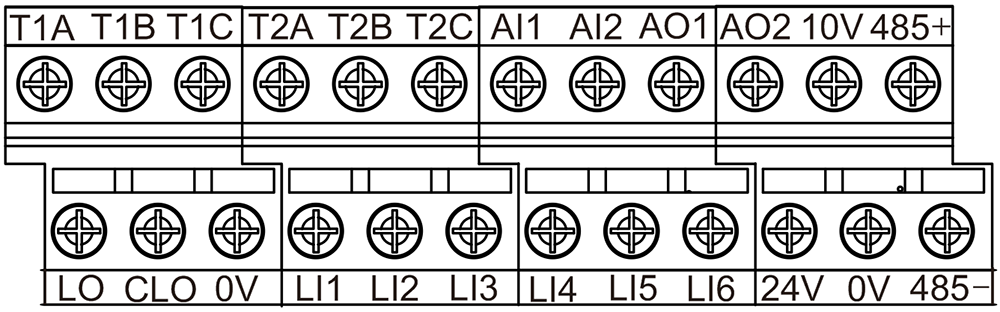

Control circuit characteristics

Internal power supply available

10V

24V

10VDC±5%, maximum current 10mA, for reference potentiometer

24VDC±5%, maximum current 100mA, for logic input port

Analog Input

AI1

Voltage analog input: 0-5VDC, or 0-10VDC, impedance is 30k

Current analog input: 0/4-20mADC, impedance is 250Ω

Resolution: 10-bit A/D conversion

Factory default setting: 0-5VDC voltage input

AI2

Voltage analog input: 0-10VDC, or PTC probe input

Resolution: 10-bit A/D conversion

Logic Input

LI1-LI8

0-24VDC power supply

Positive logic (source) and negative logic (sink) are optional, and the factory default is negative logic

Forward, reverse, run, fault reset, multi-speed and other 69 functions are optional

Products below 15kW (inclusive) only have LI1-LI6

AI1, AI2

Forced valid input

In inverters below 15kW (inclusive), AI1 and AI2 can be set as logic inputs. F309 and F310 are forced valid inputs, and their configuration functions are always valid during power-on.

Analog Output

AO1、AO2

Voltage analog output: 0-10VDC, minimum load impedance is 470Ω

Current analog output: 0/4-20mA, maximum load impedance is 700Ω

Resolution: 8 bits

Output frequency, output current, speed setting, serial output data and other functions are optional

Logic Output

LO、CLO

Open collector, maximum current 100mA, maximum voltage 30VDC

Logic output or pulse output optional, factory default setting is logic output

Output frequency, output current, speed setting, serial output data and other output functions optional

Relay Output

T1A、T1B、T1C

T2A、T2B、T2C

T1A normally open, T1B normally closed, T1C common point

T2A normally open, T2B normally closed, T2C common point

Contact capacity: 5A@250VAC, 5A@30VDC

Fault, alarm, set frequency arrival and other functions are optional

T1A defaults to fault, T2A defaults to operation

Serial Communication

MODBUS-RTU, 2-wire RS-485, terminal interface

Electrical Characteristics

AC Drive protection

Input phase loss protection, Output phase loss protection, Underload detection, Over-torque protection, Undervoltage protection, Overvoltage protection, Overcurrent protection, Overheating protection, Phase short circuit protection

Motor protection

Motor thermal protection, Motor current limiting, Motor overload, Motor short circuit

Electrical Characteristics

Protection level

IP20

Ambient humidity

95% no condensation or water accumulation

Working/Storage temperature

-10~40°C/-20~60°C

Altitude

Below 1000m

Cooling method

Forced air cooling

Installation location

Indoor
