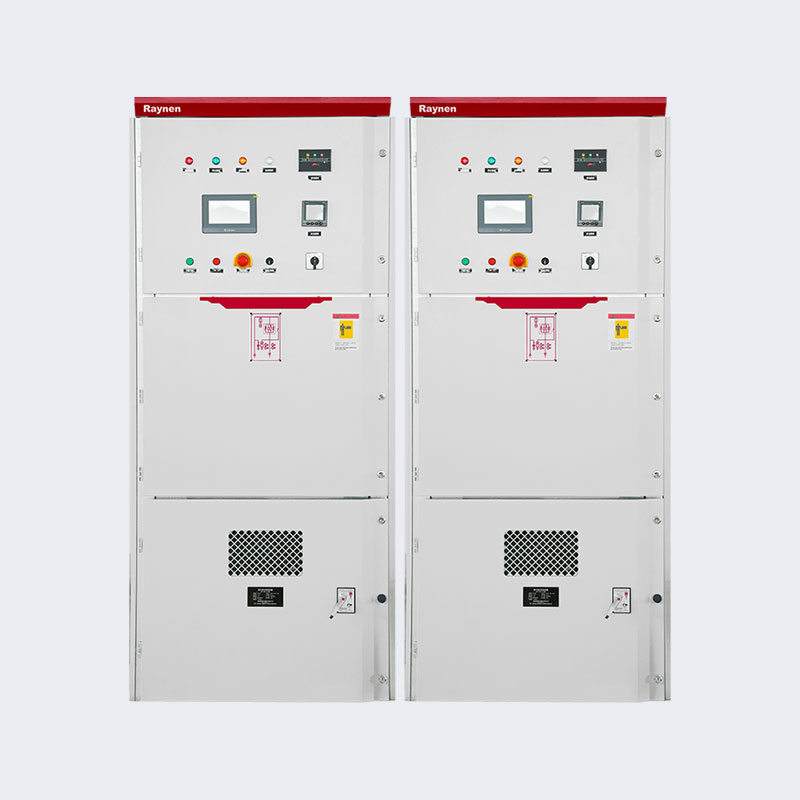

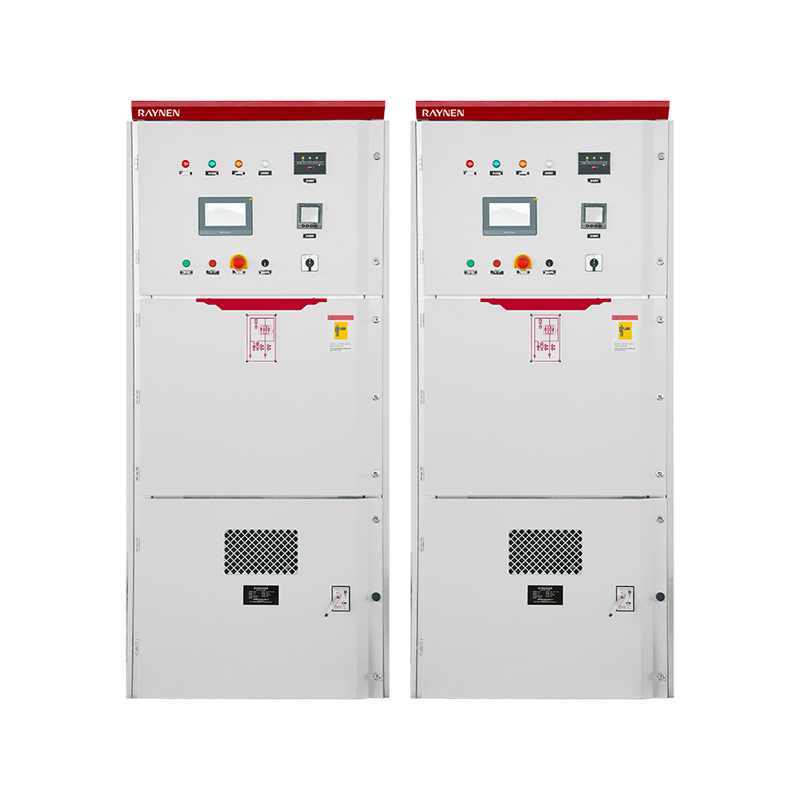

Product Summary
● Standard kyn28 cabinet, designed strictly In accordance with protection standards
● Fiber optic trigger
● PT acquisition mode, More stable than electronic mode
● Comply with international high Voltage electrical specifications
● High voltage part and low-voltage part are Completely isolated safe and reliable
● Scalable lot interface
Specifications
 |
Parametric |
|
|
Model |
RSE1000-10-8500 ~ RSE1000-10-15000 |
|
|
Rated Voltage |
10kV |
|
|
P rated (kW) |
8500/10000/15000 |
|
|
Rated current (A) |
600/720/1080 |
|
|
Size (W*H*D mm) |
Customizable |
|
 |
Modular design for easy installation and maintenance. The insulation strength is furtherenhanced |
|
|
Easy to install, debug and use: RVS is a complete motorstarting control and protection system. Allows electrical testing of the entire system using low voltage before running at high voltage. |
|
|
7-inch touchscreen LCD panel is used to make programming and parameter adjustment more convenient. The fault and real-time monitoring are more intuitive and improve the work efficiency |
|
|
program encryption settings |
Working Principle Diagram
Model Nomenclature
6kV Rated Voltage Medium Voltage Soft Starter Selection Table
|
Model |
Rate voltage ( kV ) |
Rated power ( kW ) |
Rated current ( A ) |
Dimensions (W*H*D) mm |
|
|
(-G) General type |
(-E) Integration Type |
||||
|
RSE1000-420-6 |
6 |
420 |
50 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-630-6 |
6 |
630 |
75 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-800-6 |
6 |
800 |
96 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-1250-6 |
6 |
1250 |
150 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-1600-6 |
6 |
1600 |
200 |
1000*2300*1500 |
- |
|
RSE1000-2500-6 |
6 |
2500 |
300 |
1000*2300*1500 |
- |
|
RSE1000-3300-6 |
6 |
3300 |
400 |
1000*2300*1500 |
- |
|
RSE1000-4150-6 |
6 |
4150 |
500 |
1000*2300*1500 |
- |
|
RSE1000-5000-6 |
6 |
5000 |
600 |
Customizable |
- |
10kV Rated Voltage Medium Voltage Soft Starter Selection Table
|
Model |
Rate voltage ( kV ) |
Rated power ( kW ) |
Rated current ( A ) |
Dimensions (W*H*D) mm |
|
|
(-G) Genenal type |
(-E) Integration Type |
||||
|
RSE1000-420-10 |
10 |
420 |
30 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-630-10 |
10 |
630 |
45 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-800-10 |
10 |
800 |
60 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-1250-10 |
10 |
1250 |
90 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-1600-10 |
10 |
1600 |
110 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-1800-10 |
10 |
1800 |
130 |
1000*2300*1500 |
1000*2300*1500 |
|
RSE1000-2250-10 |
10 |
2250 |
160 |
1000*2300*1500 |
- |
|
RSE1000-2500-10 |
10 |
2500 |
180 |
1000*2300*1500 |
- |
|
RSE1000-2800-10 |
10 |
2800 |
200 |
1000*2300*1500 |
- |
|
RSE1000-3500-10 |
10 |
3500 |
250 |
1000*2300*1500 |
- |
|
RSE1000-4000-10 |
10 |
4000 |
280 |
1000*2300*1500 |
- |
|
RSE1000-4500-10 |
10 |
4500 |
320 |
1000*2300*1500 |
- |
|
RSE1000-5500-10 |
10 |
5500 |
400 |
1000*2300*1500 |
- |
|
RSE1000-6500-10 |
10 |
6000 |
430 |
1000*2300*1500 |
- |
|
RSE1000-7000-10 |
10 |
7000 |
500 |
1000*2300*1500 |
- |
|
RSE1000-8500-10 |
10 |
8500 |
600 |
Customizable |
- |
|
RSE1000-10000-10 |
10 |
10000 |
720 |
Customizable |
- |
|
RSE1000-15000-10 |
10 |
15000 |
1080 |
Customizable |
- |
Technical Data
|
Basic parameters |
|
|
Load type |
Three-phase medium voltage squirrel cage asynchronous motor, synchronous motor |
|
Working frequency |
50HZ/60Hz±2Hz |
|
phase sequence |
Allowed to work in any phase sequence (it can be set by parameters) |
|
Bypass contactor |
Contactor with direct starting capacity |
|
Control power |
AC220V±15% |
|
Overvoltage protection |
DV/DT absorption |
|
Starting frequency |
ambient temperature: -20℃~+50℃ |
|
Environment condition |
1-6 times per hour |
|
Relative humidity: 5% - 95% non-condensing |
|
|
The altitude shall be less than 1500m |
|
|
HMI |
|
|
Language |
English / Chinese / Russian |
|
Instrument display |
|
|
Voltmeter |
Display three-phase main power supply voltage |
|
Ammeter |
Display three-phase main circuit current |
|
Protection function |
|
|
Phase failure protection |
During startup or operation, disconnect any phase of the main power supply |
|
Overcurrent protection |
over current protection set: 100~500% |
|
Phase current unbalance protection |
20~100% |
|
Overload protection |
Overload protection level:10A,20A,30A |
|
Undervoltage protection |
Range：50~100% |
|
|
Action time：0~10S |
|
Starting timeout |
Starting time limit：10~120S |
|
Overvoltage protection |
When the main power supply voltage is higher than 120% of the rated value |
|
Underload protection |
When the main power supply voltage is lower than 70% of the rated value |
|
Grounding protection |
When the grounding current is greater than the set value |
|
Communication |
|
|
Protocol/interface |
Modbus RTU |
|
Network connections |
Each RVS can communicate with 32 RVSs online |
|
Function |
Observe operation status and programming |
|
Data record |
|
|
Failure record |
Record the fault information of the last 1000 times |
